Tuya Smart Function Panel | 10" Touchscreen

Multi Gateway ZigBee + Bluetooth | WiFi | Spotify | Alexa

▶️ Professional Control Panel

Specifically Designed for the Tuya Smart System

☑️ Built-in Multi Gateway with ZigBee + Bluetooth

☑️ Control TUYA devices via the screen, programmable buttons, and voice (Amazon Alexa)

☑️ Integrated Spotify support — music at your fingertips in your smart home!

✅ Bluetooth support – connect headphones, speakers, or other audio devices

✅ View ZigBee devices added to the Tuya Smart app (after update – control even more devices)

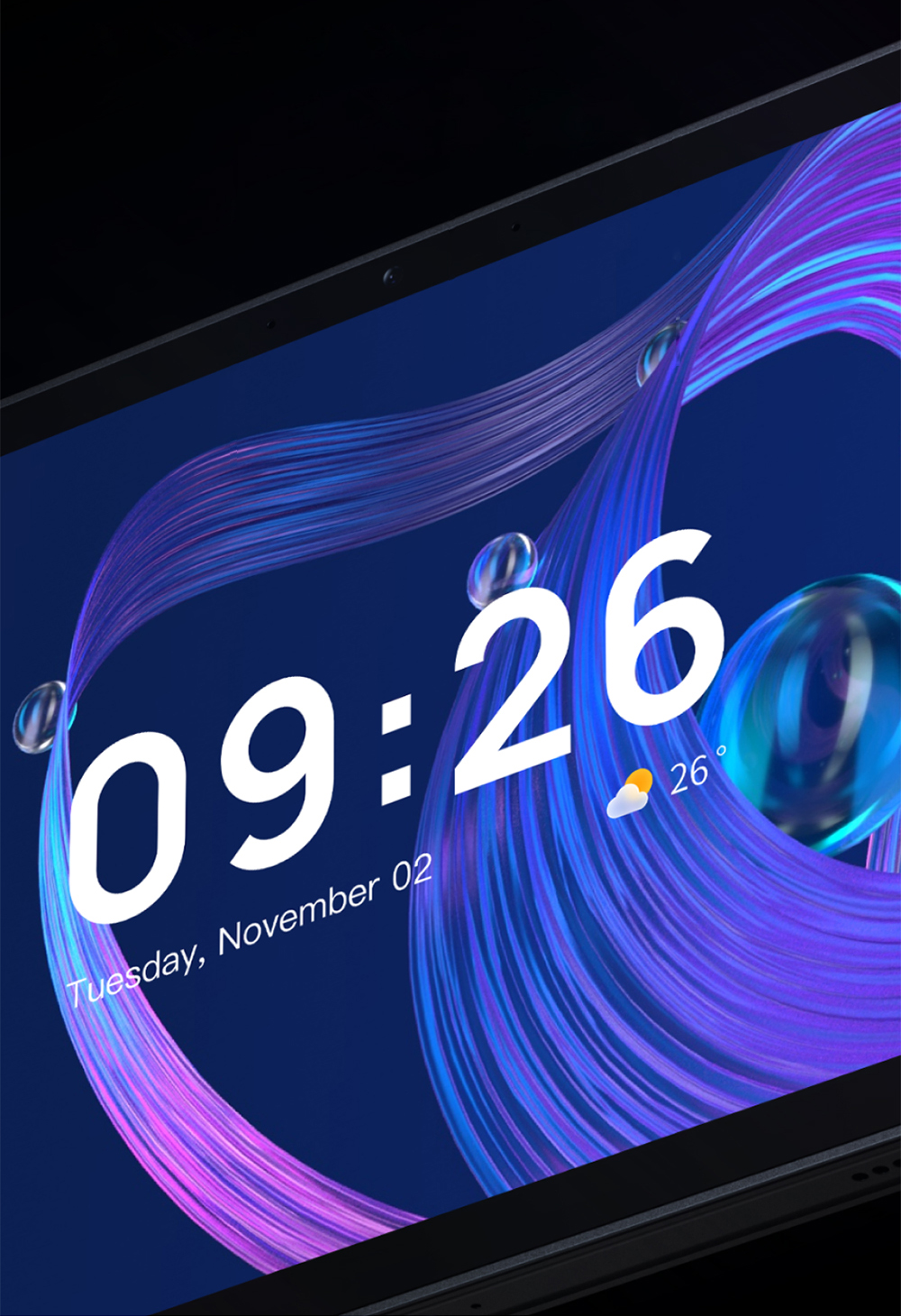

✅ Displays time and weather – data fetched directly from the internet

✅ Amazon Alexa voice control – built-in voice assistant, no need for an extra speaker

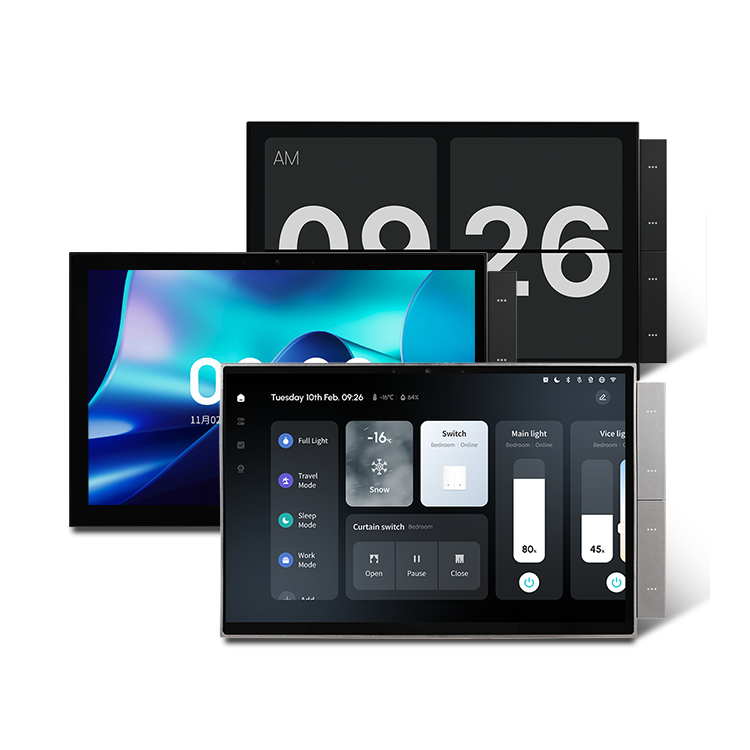

✅ Home screen customization – choose from multiple ready-made themes

✅ Screen saver – set schedules for turning the display on and off

✅ Widget configuration – quick access to selected devices from the home screen

✅ Full room control – access devices throughout your home from one panel

✅ Supports a wide range of devices: thermostats, lighting, dimmers, LED controllers, light switches, curtain robots, cameras, music volume control, and more

✅ LED lighting control – turn on/off, change color and brightness

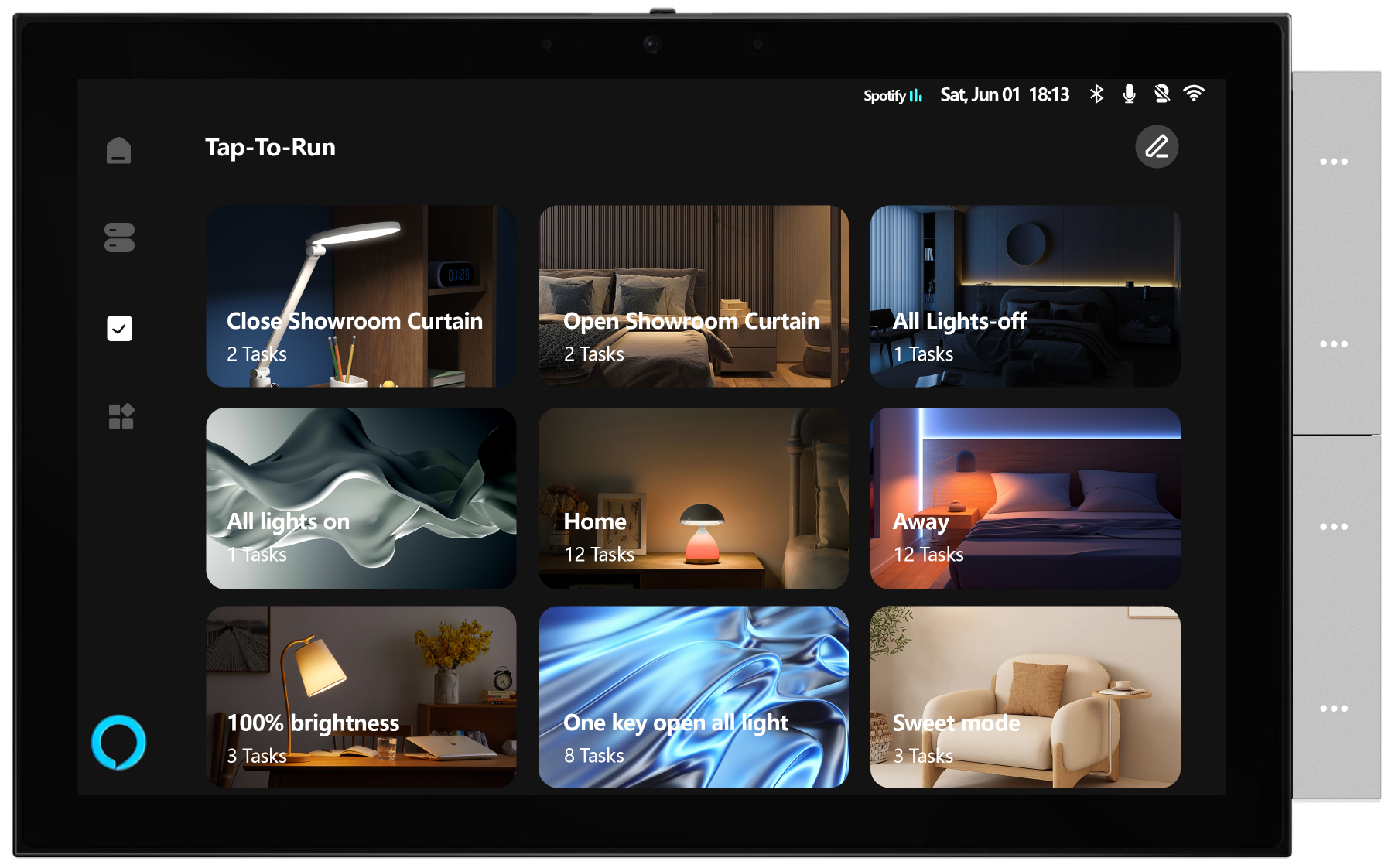

✅ Quick access to TAP TO RUN scenes created in the Tuya app

✅ Built-in microphone – perfect for working with video intercoms and IP cameras

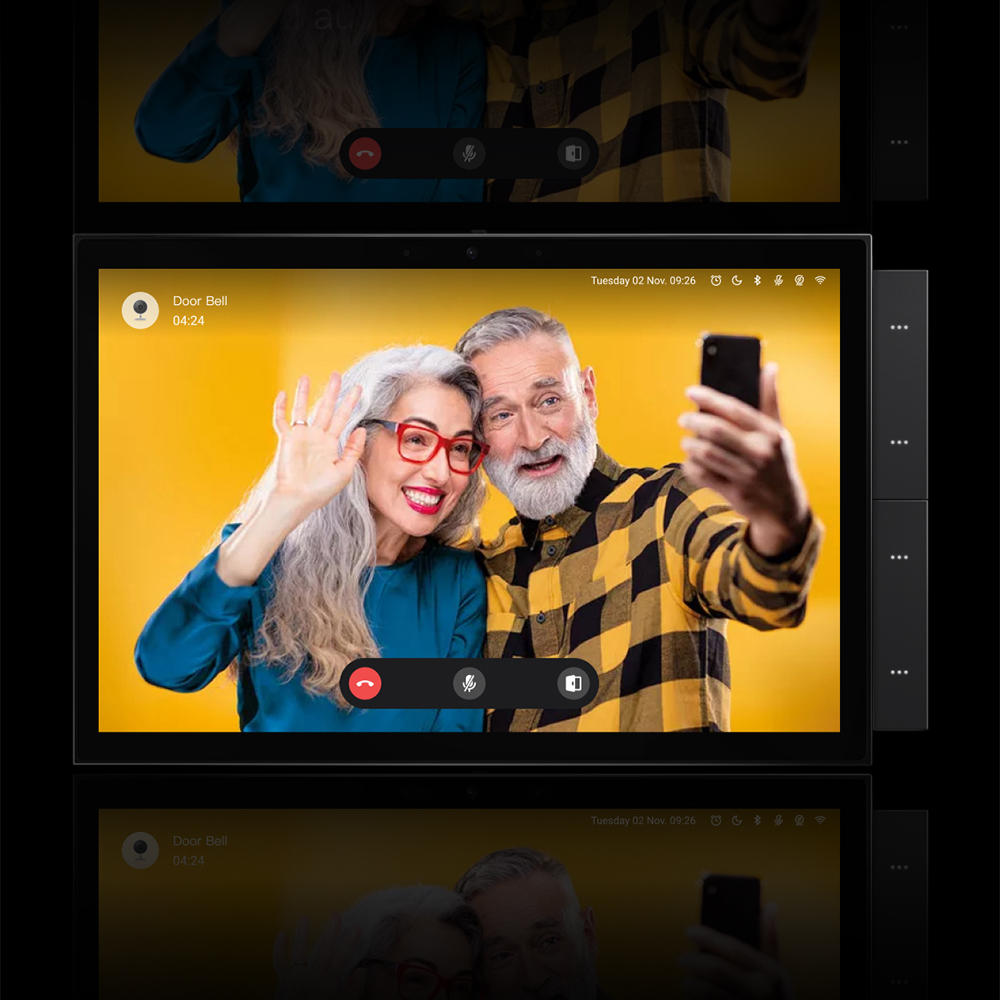

▶️ Full-Featured Intercom

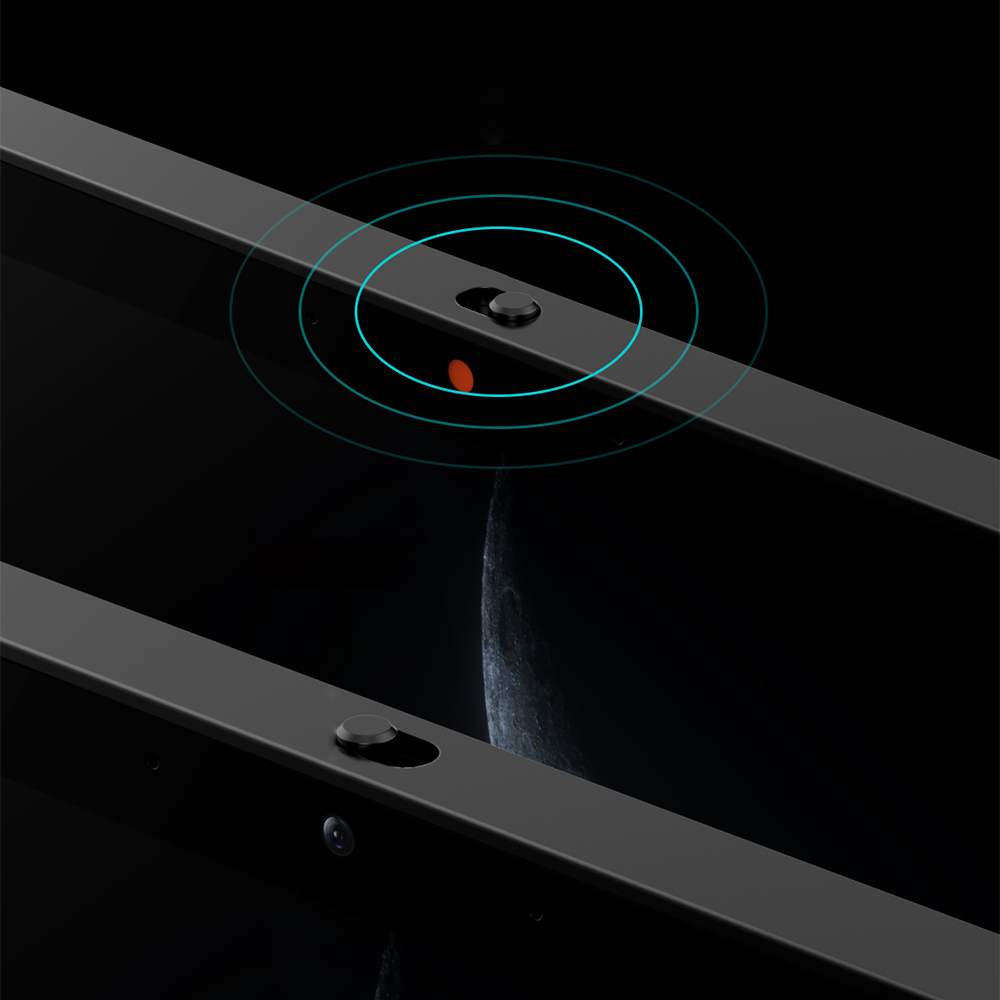

5 Megapixel Camera with Specially Designed Privacy Shutter!

ℹ️ For full functionality with video intercoms, cameras, door locks, or gate controllers.

▶️ Stunningly Clear and Responsive Screen

Crystal Clear and Vibrant Colors

The IPS TFT LCD panel with a resolution of 1920 × 1200 on a 10" screen delivers sharp details, vivid and natural colors, and wide viewing angles.

The adaptive refresh rate of 60 Hz ensures smooth and clear content display. This makes the touch response precise and lag-free, greatly enhancing user comfort and satisfaction.

Displays 16.7 million colors for exceptionally realistic, rich, and deep images.

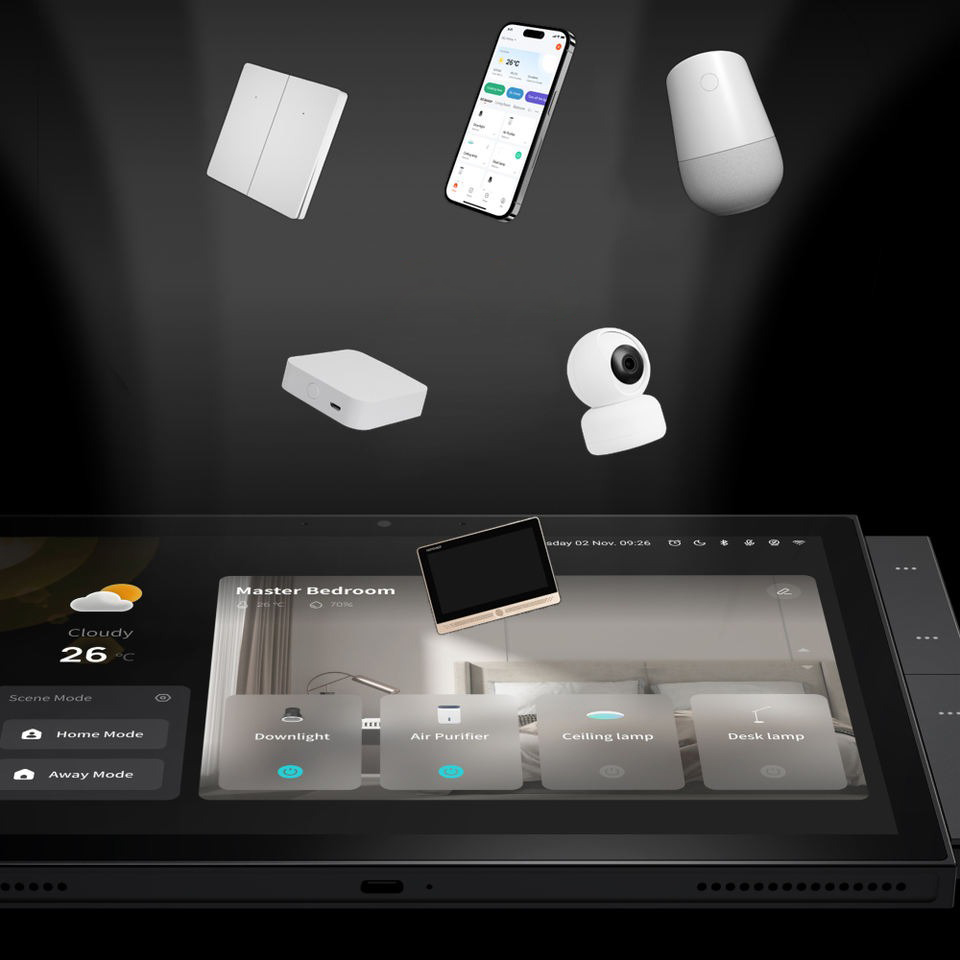

▶️ Control Everything

Without Limits

The 10″ touchscreen panel functions as a ZigBee gateway, also supporting Bluetooth and WiFi.

It allows control of all Tuya Smart devices, creating scenes, schedules, and automations based on location, weather, or sensor activity.

▶️ Programmable Buttons

Your Favorite Scenes, Functions, or Automations in Four Clicks

The intuitive interface provides quick access to preview and change settings, and a single click can turn on, off, or adjust an entire group of devices. This can be done from the touchscreen or assigned to physical buttons on the device housing.

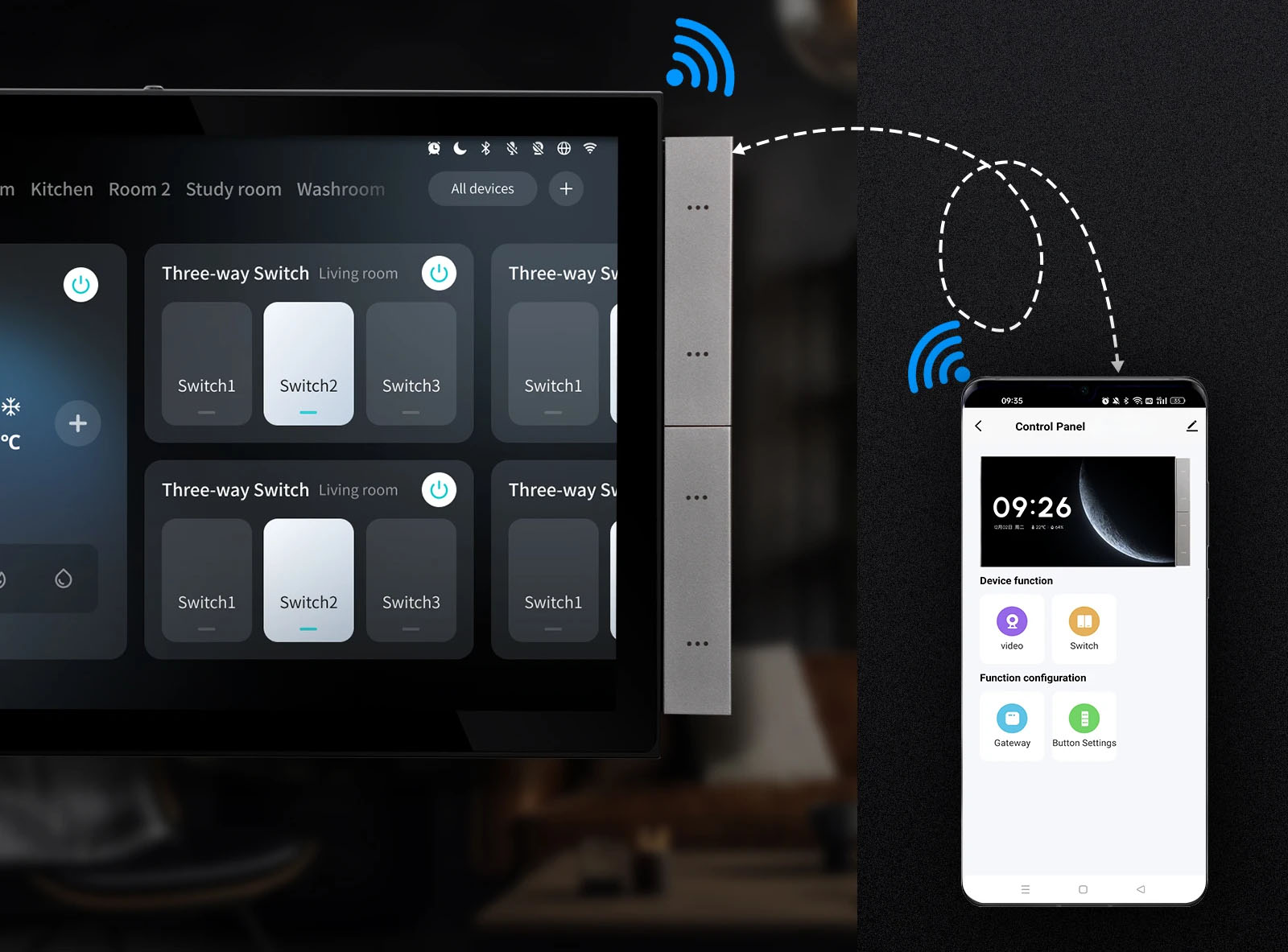

▶️ Wireless File Transfer

Quickly and Conveniently Transfer Data Between the Panel and Your Phone via Built-in App.

ℹ️ When selecting a specific device, besides basic functions, you can use the “Go to Detail Panel” option.

It displays an overlay faithfully replicating the Tuya Smart mobile app interface, ensuring control and a familiar user experience.

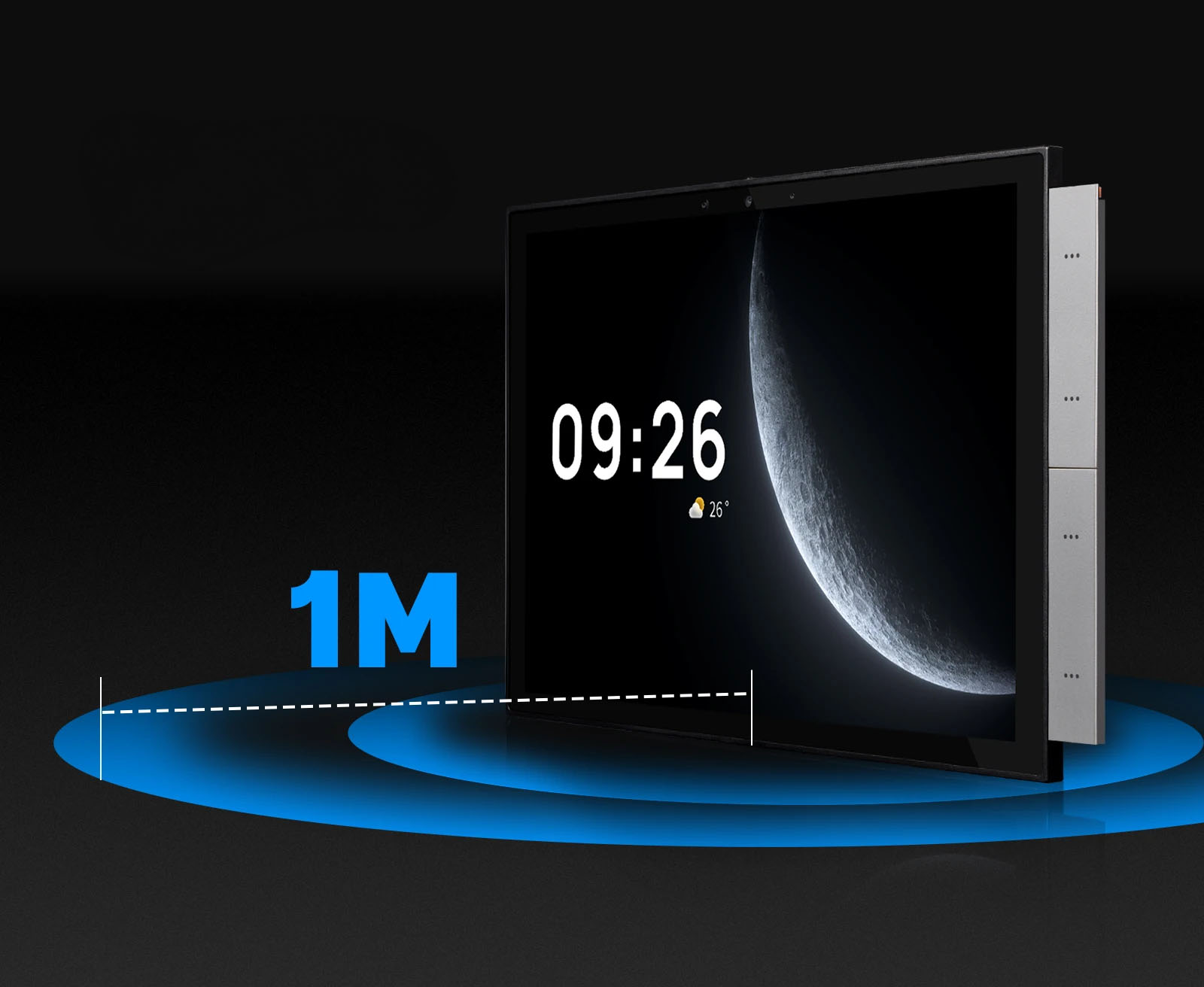

▶️ Built-in Proximity Sensor

The Screen Automatically Turns On When Motion Is Detected

ℹ️ What is Tuya Smart?

The Most Popular and Trusted Smart Home System

Tuya Smart is an essential part of the smart home ecosystem. It is free to download for iOS and Android smartphones.

Over half a million smart devices are already supported by the Tuya app. It is available in many languages, including English and Polish. It enables product connection via various communication protocols from WiFi through Bluetooth to ZigBee.

• Quick registration and easy management of multiple devices
• Home management and shared access among family members
• Communication via various protocols
• Voice control with Amazon Alexa or Google Assistant
• Advanced automation of connected smart devices
• Event notifications directly on your smartphone

ℹ️ What is ZigBee?

The Most Efficient Dedicated Smart Home Communication Protocol

• ▶️ Communication protocol at 2.4 GHz based on a MESH network – every device strengthens the signal
• ▶️ Lightning-fast response (approx. 0.2 s) to device status changes
• ▶️ Ability to connect over 50 devices to one gateway
• ▶️ Low power consumption extending battery life of devices
• ▶️ Stable and reliable network that does not overload your home WiFi

ℹ️ Specifications:

▶️ Connectivity and Smart Features

• App: TUYA Smart | Smart Life
• Communication: WiFi 2.4 GHz, Bluetooth, ZigBee 3.0 (panel works as a multi gateway)
• Control: Remote via app, voice (built-in Amazon Alexa), manual via touchscreen
• Functions: Intercom, wireless file transfer between panel and phone, time and weather display, TAP TO RUN scenarios, widget and screen saver settings

▶️ Screen Parameters

• Type: TFT LCD IPS
• Diagonal: 10"
• Resolution: 1920 × 1200 px
• Refresh rate: 60 Hz
• Color gamut: 16.7 million

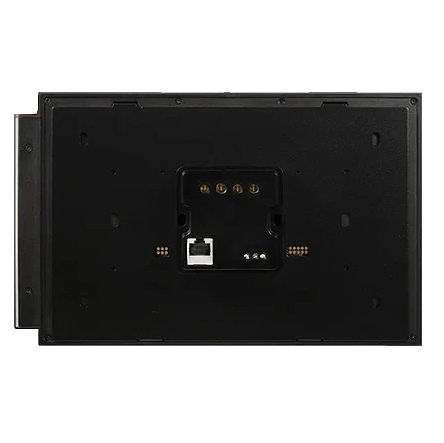

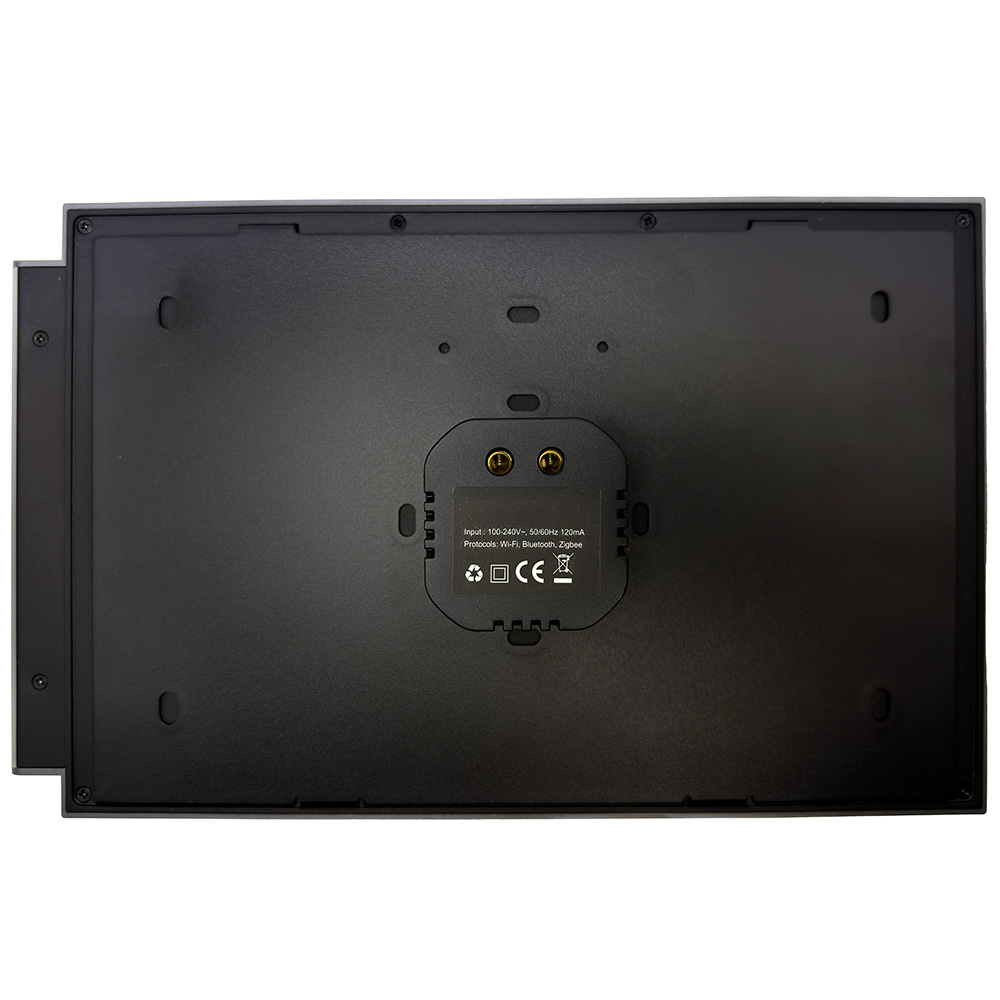

▶️ Electrical Parameters

• Input voltage: 110 V - 250 V AC, 50/60 Hz
• Power supply: L+N

▶️ Other Parameters

• Processor: Quad-core CPU
• Camera: 5 MP with physical privacy shutter
• Proximity sensor: Yes (activates screen when motion detected)
• Device support: Up to 50 ZigBee devices, up to 25 Bluetooth devices
• Operating humidity: 5% - 90% RH (non-condensing)
• Dimensions: 259.4 × 161.4 × 13 mm

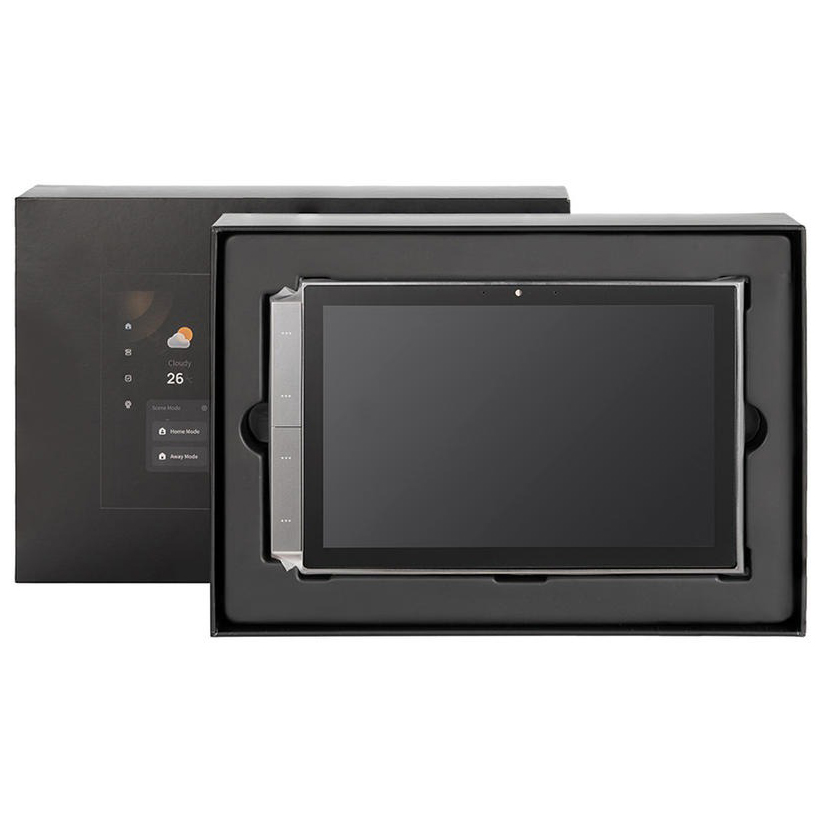

ℹ️ Package Includes:

• 10" Touch Panel ZigBee WiFi Bluetooth TUYA
• Manual

ℹ️ Product Code: T510
