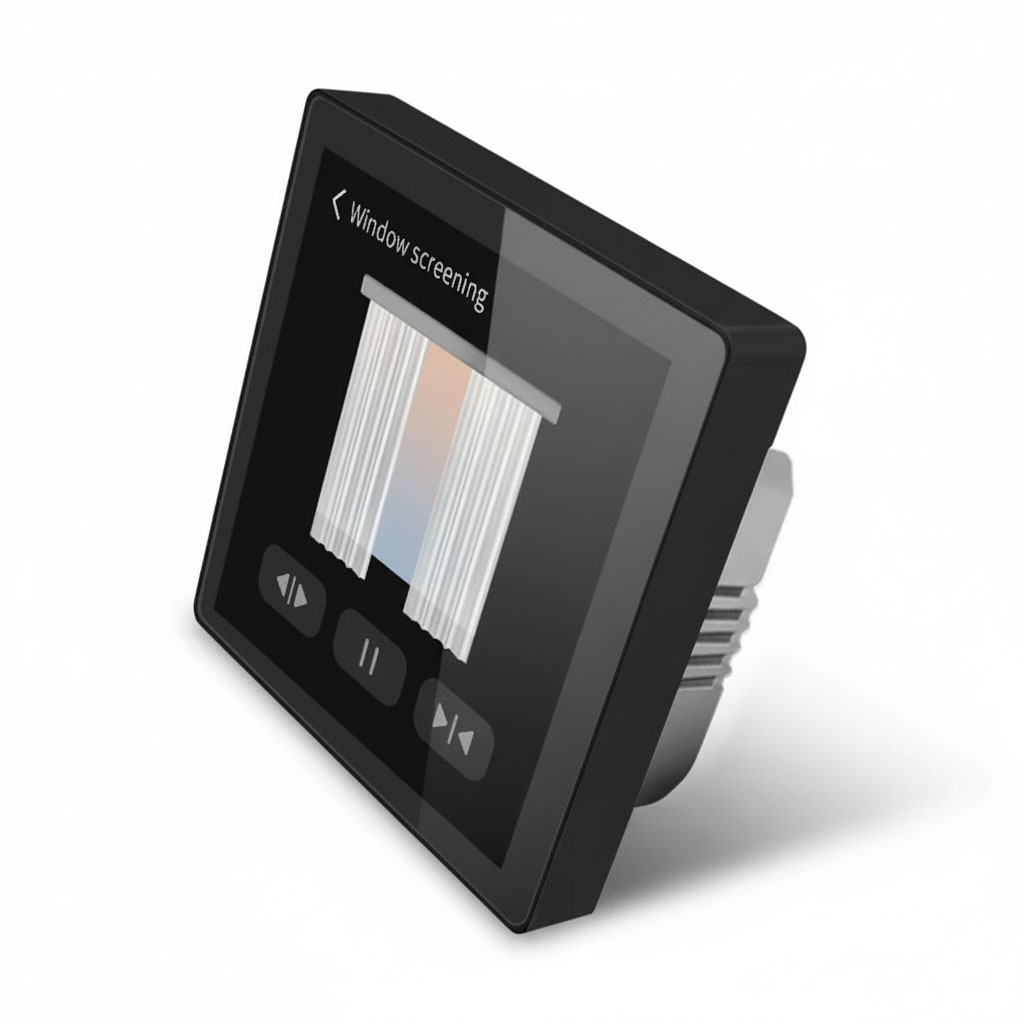

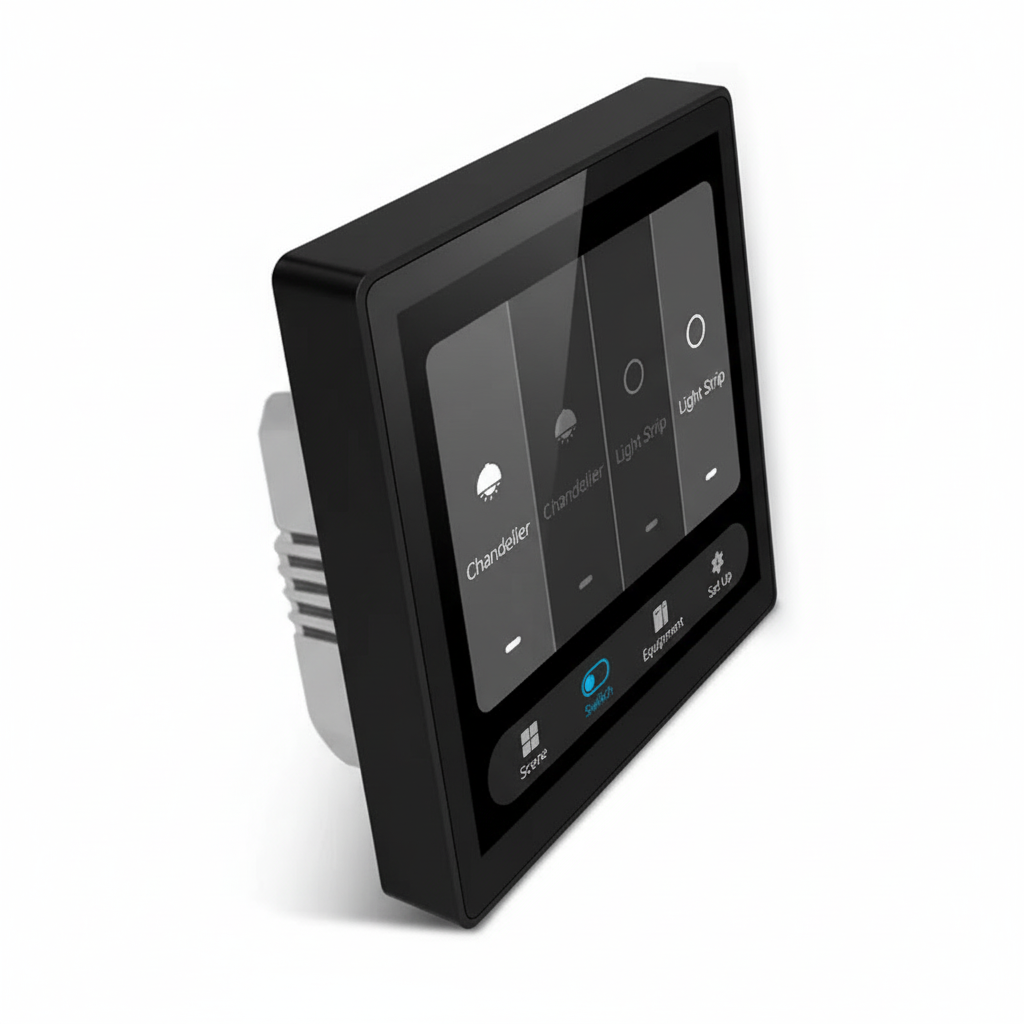

Smart 4" Touch Panel

ZigBee | Scene & Light Control | TUYA Smart

✅ Versatile Control Center

A modern solution for smart home management. Control lighting, blinds, heating, and air conditioning from a single device. Save your favorite settings and activate them with a single touch.

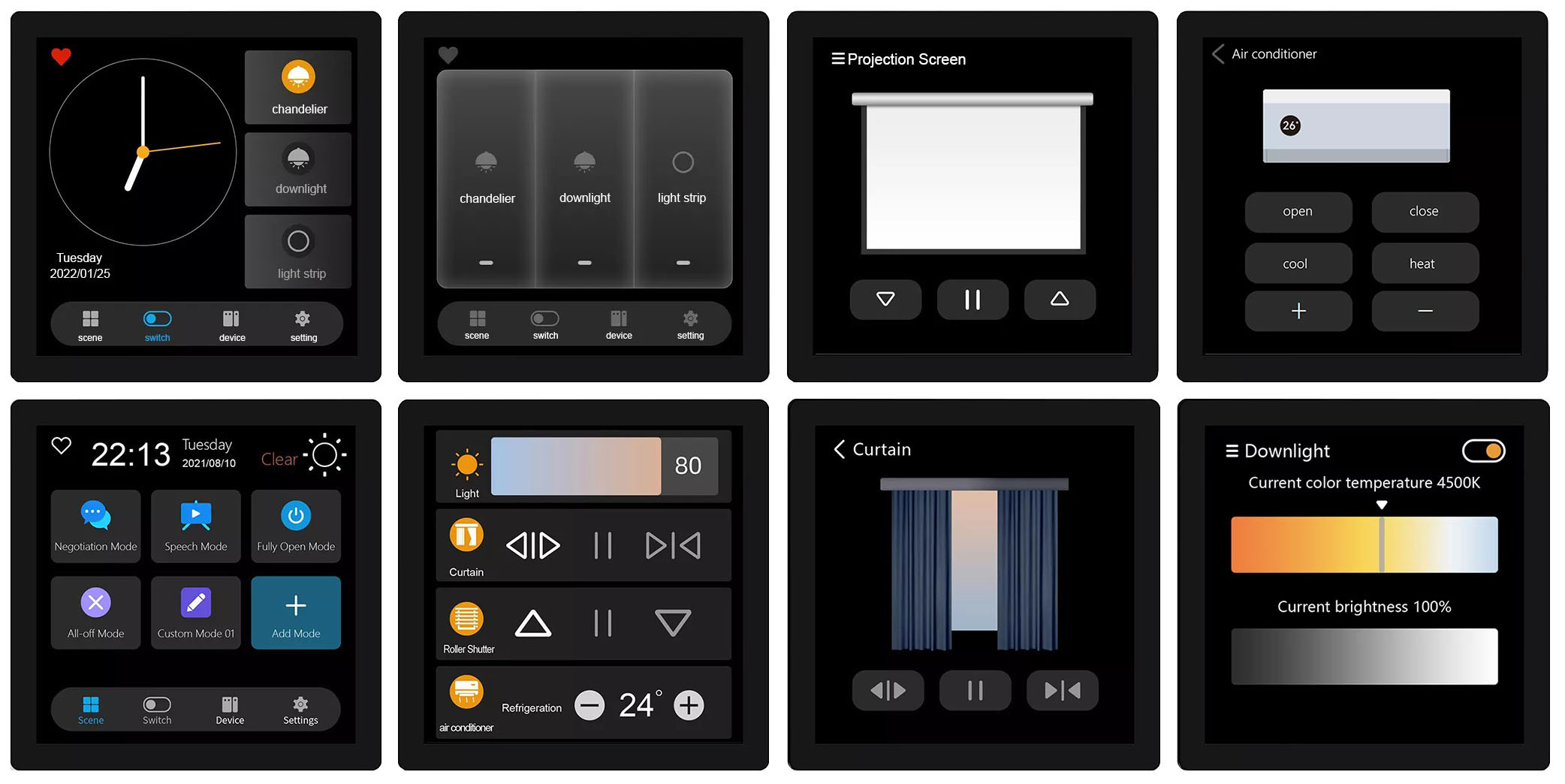

✅ 4" Touch Screen

Clear LCD 480×480 px display for intuitive operation and fast access to all functions.

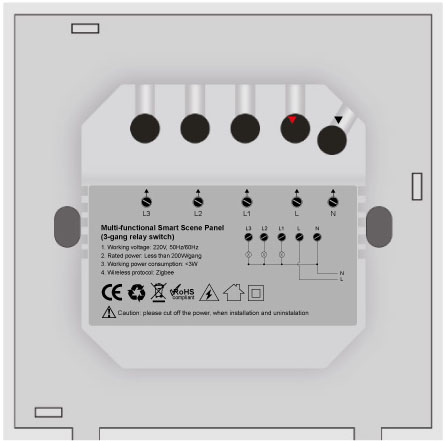

✅ 3 Lighting Circuits

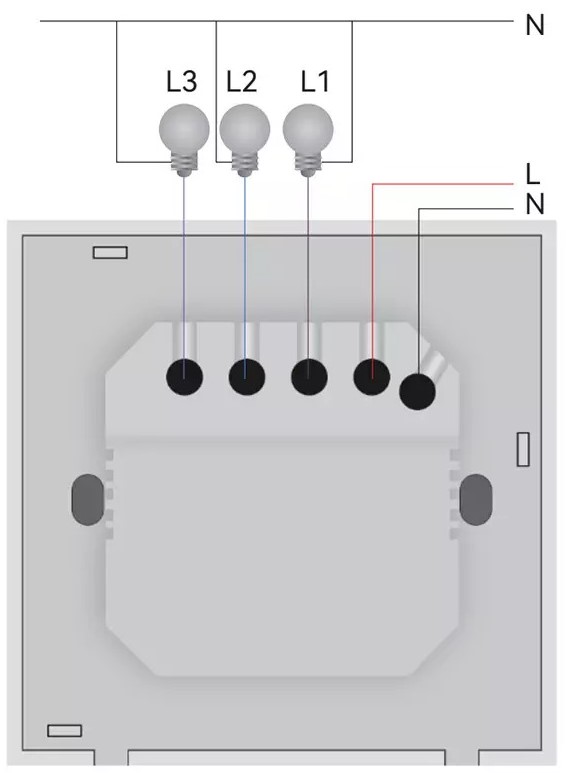

Control 3 independent 230V light circuits directly from the panel.

✅ Smart Scenes

Create and run TAP TO RUN scenes – turn on lights, lower blinds, or start the AC with a single touch.

ℹ️ Note: Panel Requires ZigBee Hub

Requires a ZigBee 3.0 hub for operation. Compatible models available in our store.

▶️ Scene Control Panel

Works as a ZigBee scene panel and 3-channel light switch.

Use the Tuya Smart app to create custom automations and control devices in real time.

ℹ️ Example Applications:

• ✅ Living Room – control lights and blinds from one panel.

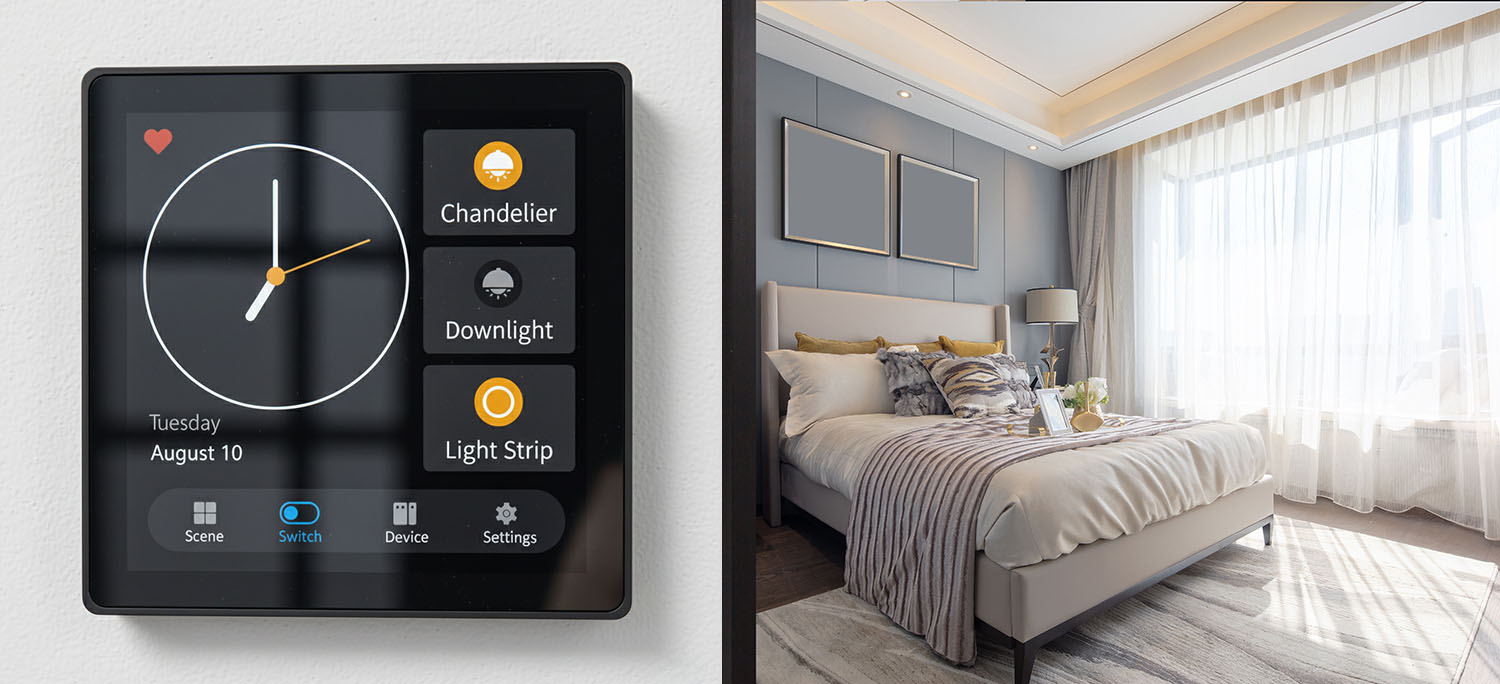

• ✅ Bedroom – quickly turn off lights and start the air conditioning.
• ✅ Office – scenes optimized for work, e.g., cool light for better focus.
• ✅ Hallway – instant lighting control.

▶️ Why ZigBee?

Stable and fast connection

• ✅ Scenes and automations work locally, even without internet.
• ✅ MESH network ensures reliability and fast response (0.2 s).
• ✅ Supports over 50 devices in one network.
• ✅ Lower energy consumption than WiFi.
• ✅ Event and parameter history saved for months.

ℹ️ Specifications:

▶️ Connectivity & Smart Features

• App: Tuya Smart / Smart Life
• Communication: ZigBee 3.0 (IEEE 802.15.4)
• Control: Touch panel, mobile app
• Functions: Scene control, 3 light circuits, automations

▶️ Technical Parameters

• Display: 4" LCD 480×480 px
• Power Supply: 100–240V AC 50/60Hz
• Dimensions: 87 × 87 × 39 mm (fits 60 mm wall box)
• Operating Temperature: 0℃ ~ +40℃
• Humidity: 5%–90% RH (non-condensing)

▶️ Applications

• Light control
• Blinds and curtain management
• Integration with air conditioning and smart home systems

ℹ️ In the Box:

• ZigBee Touch Panel
• User Manual
• Mounting Screws

Product Code: T509
