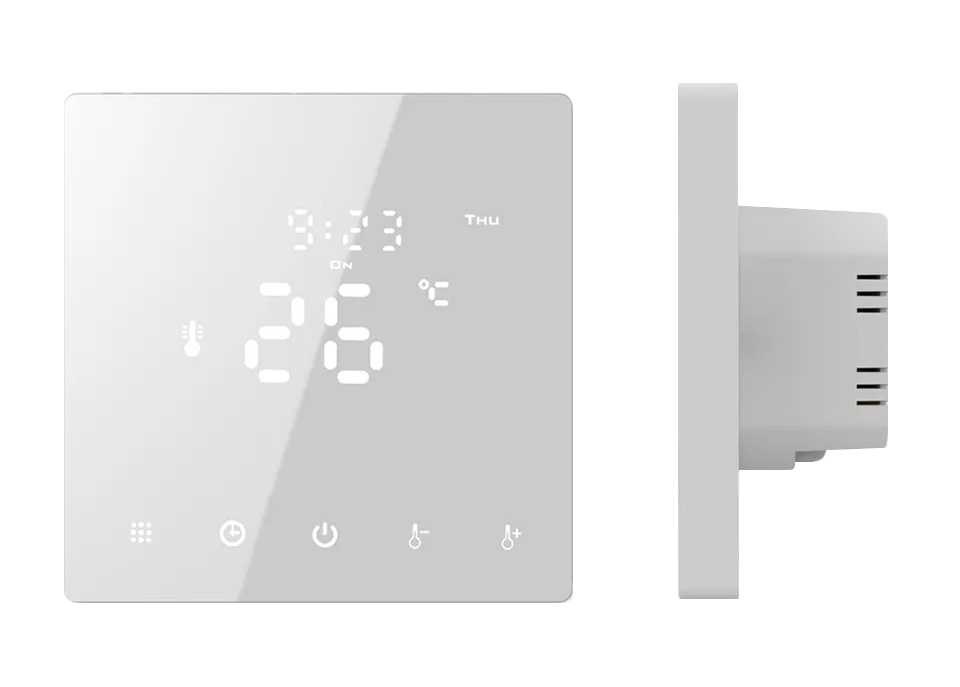

Smart Thermostat | 16A | WiFi | TUYA

For underfloor heating, radiators, and water/gas boilers

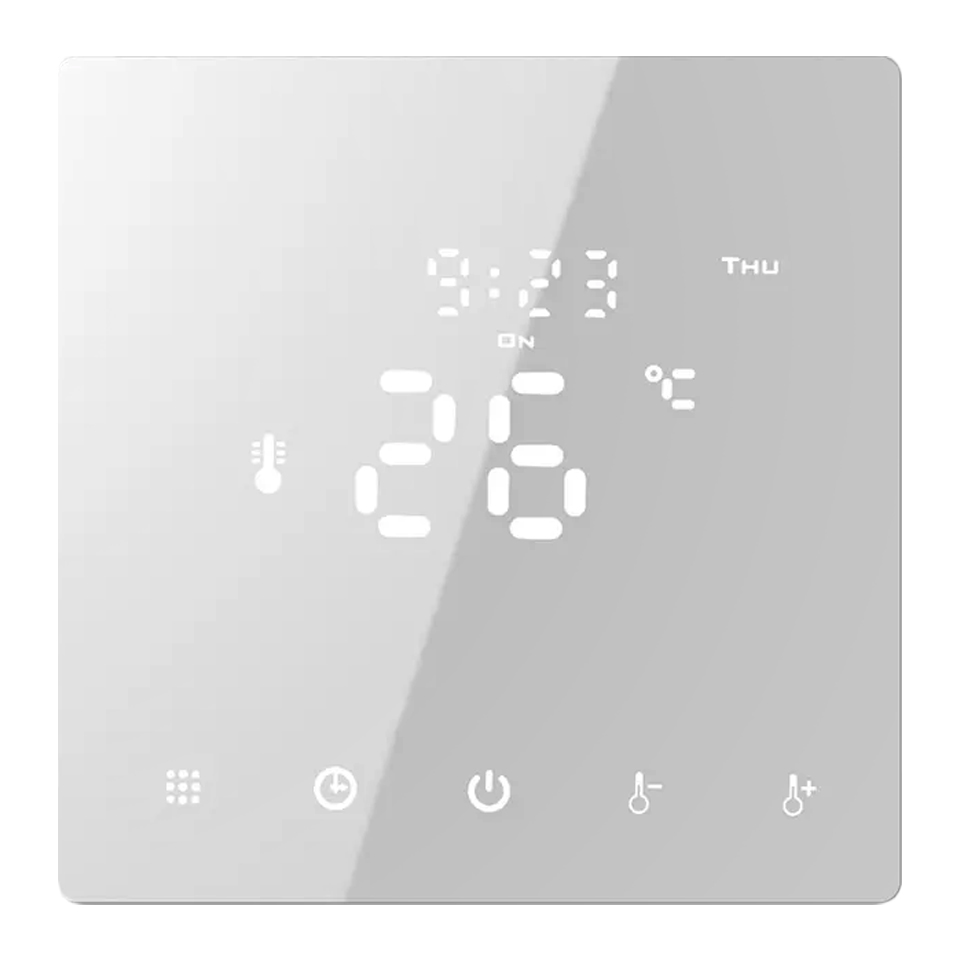

✨ Modern design with touch panel and simple operation

▶️ Key Features:

✅ Precise built-in temperature sensor + NTC floor sensor (included)

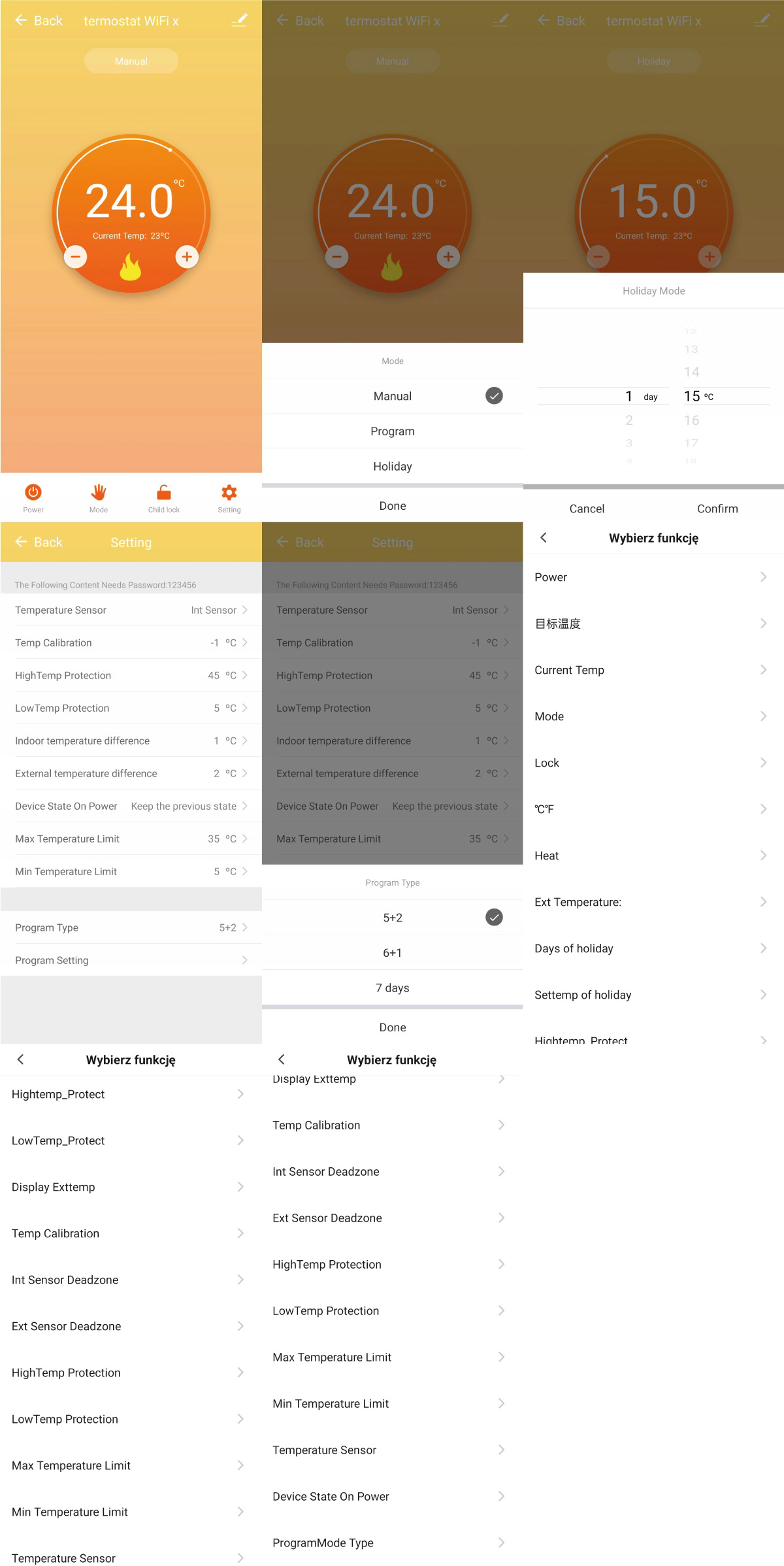

✅ Touch control, TUYA app (iOS/Android), Google Home and Alexa

✅ Operating modes: manual, programmable, holiday

✅ Weekly programming: 7 days, up to 6 cycles per day (5+2, 6+1, 7)

✅ Additional functions: child lock, temperature correction, hysteresis

✅ Automation based on heating status – relay connection possible

✅ Fits standard 60mm flush-mounted boxes

✅ Connects to home WiFi – no gateway or port configuration required

⏰ Heating Management

Set a schedule for 7 days a week, up to 6 cycles per day. Optimize heating considering night and absence of residents. Adjustments can be made remotely via the app.

▶️ Automations

Create smart scenarios in the TUYA app by connecting the thermostat with other smart devices. Reactions can be set based on schedules, location, weather, and the status of other devices.

✨ Smart Home in Your Hand

• Integration with over 11,000 devices in the TUYA app
• 30 device categories (control, climate, monitoring, etc.)
• Free app on iOS and Android, in Polish
• Remote, voice, and touch control
• Create advanced scenarios and automations

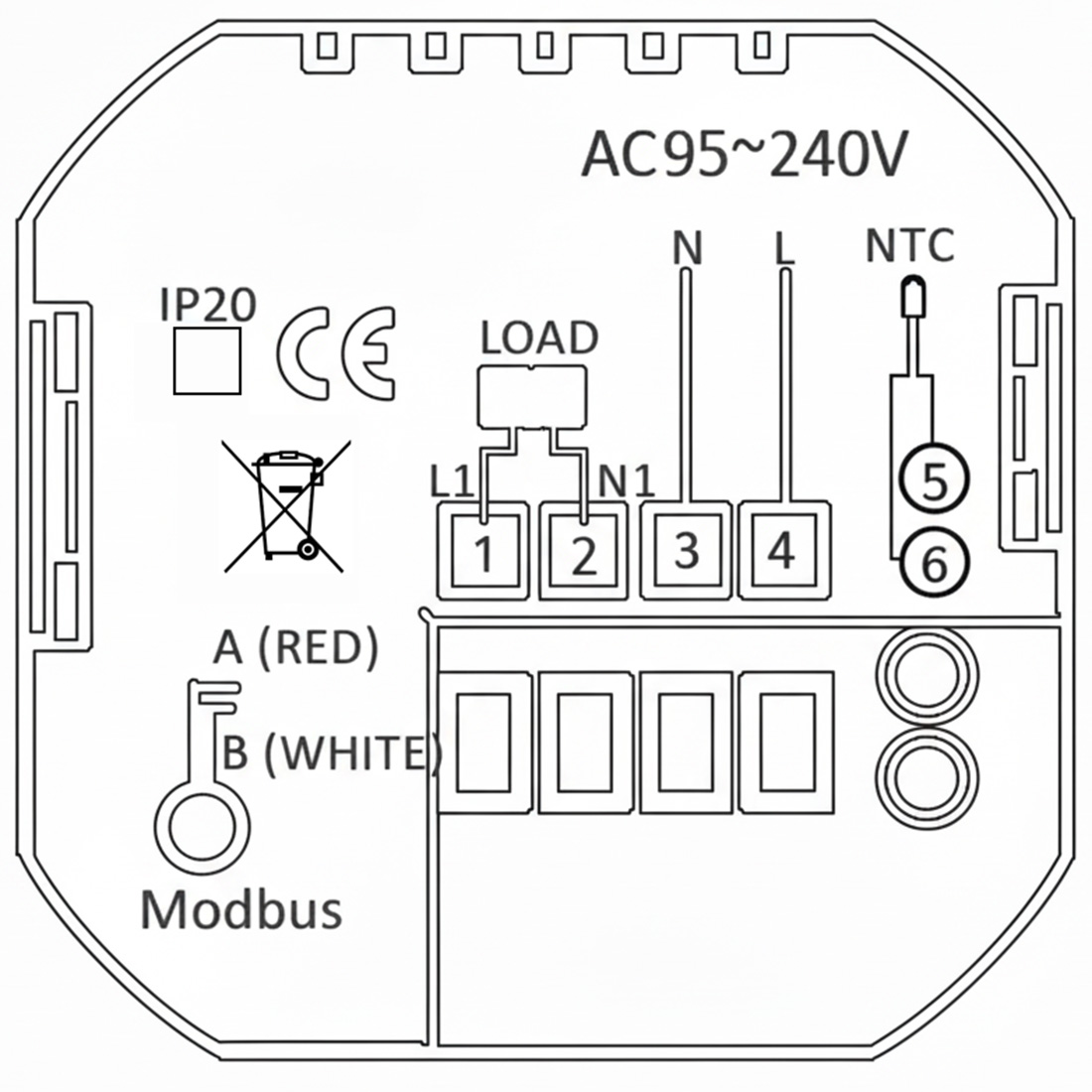

ℹ️ Wiring Diagram

Build Your Own Smart Home

No wires! The thermostat works wirelessly with other devices in the TUYA ecosystem, allowing you to create automation networks, alarm systems, and smart notifications.

ℹ️ Specifications:

• App: TUYA Smart
• Max Load: 16 A
• Power Supply: 230 V AC, 50~60 Hz
• Sensor: NTC 10K 2.5 m (included)
• Accuracy: ±0.5°C
• Temperature Setting Range: 5–35°C
• Displayed Temperature: 0–70°C
• Operating Temperature: 0–45°C
• Operating Humidity: 5–95% RH
• Button Type: touch
• Fits Boxes: 60 mm
• Dimensions: 85 × 85 × 10 mm
• Protection Class: IP20

ℹ️ Package Includes:

• TR068 Thermostat
• NTC 10K 2.5 m Sensor
• Manual
• Mounting Screws

Product Code: TR068
