Smart WiFi Thermostat

Volt-Free | Remote Control | TUYA Smart

✅ Remote & Touch Control

Intuitive touch panel and TUYA Smart app allow temperature control from anywhere in your home.

✅ Voice Assistant Compatibility

Works with Google Home and Amazon Alexa, integrating with your smart home system.

✅ Accurate Temperature Measurement

Choose the reading source: internal sensor, external sensor, or both simultaneously.

ℹ️ Heating Management

7-Day Programmable Schedule

Set a schedule for 7 days a week with up to 6 temperature changes per day. Optimize home heating to reduce costs and increase comfort. Adjustments can be made in real time via the app.

✅ Automations & Smart Scenarios

Full Control in TUYA System

Create automations based on schedules, GPS location, weather, or status of other TUYA devices. Integrate with multiple devices in your smart home.

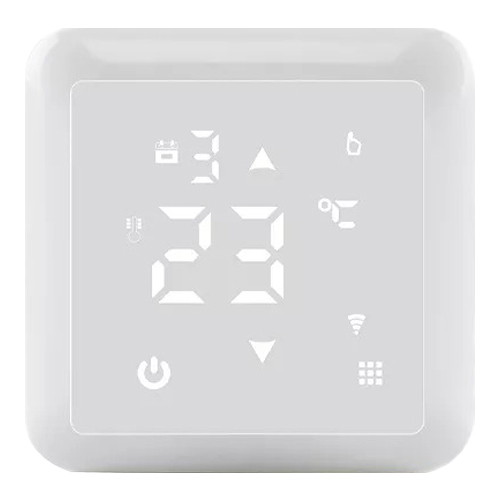

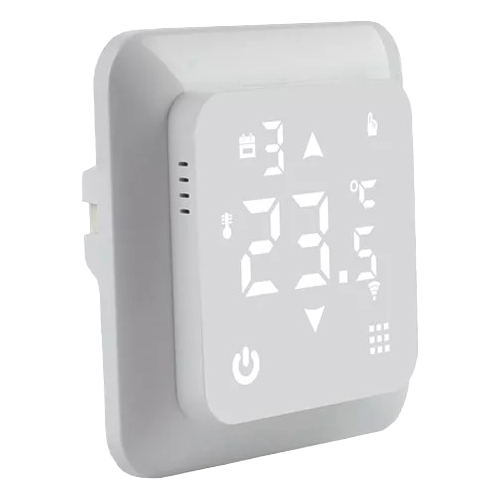

✅ Touch Panel & Modern Design

Elegance & Functionality

Large touch screen with adjustable brightness (two modes: day and night). Sleek, modern design fits perfectly in any interior.

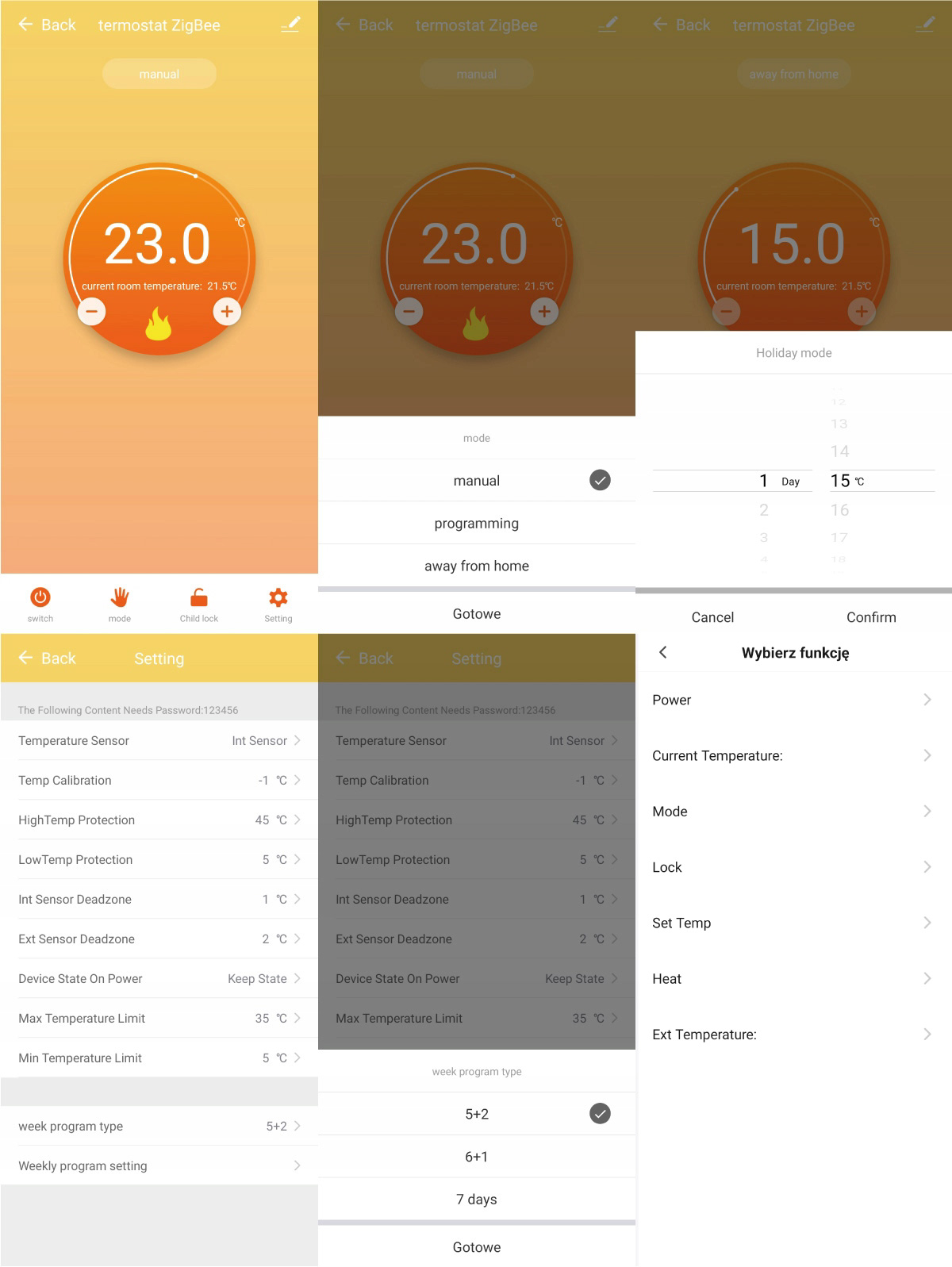

ℹ️ Screenshots from TUYA App

ℹ️ Wiring Diagram

ℹ️ Technical Specifications

• Max Load: 3 A
• Power Supply: 230 V AC, 50~60 Hz
• Measurement Accuracy: ±0.5°C
• Temperature Setting Range: 5°C – 35°C
• Displayed Temperature Range: 0°C – 70°C
• Operating Temperature: 0°C – 45°C
• Operating Humidity: 5% – 95% RH
• Dimensions: 82 × 82 × 20 mm
• Protection Class: IP20

ℹ️ In the Box:

• 3A Relay Thermostat TR082
• User Manual
• Mounting Screws
