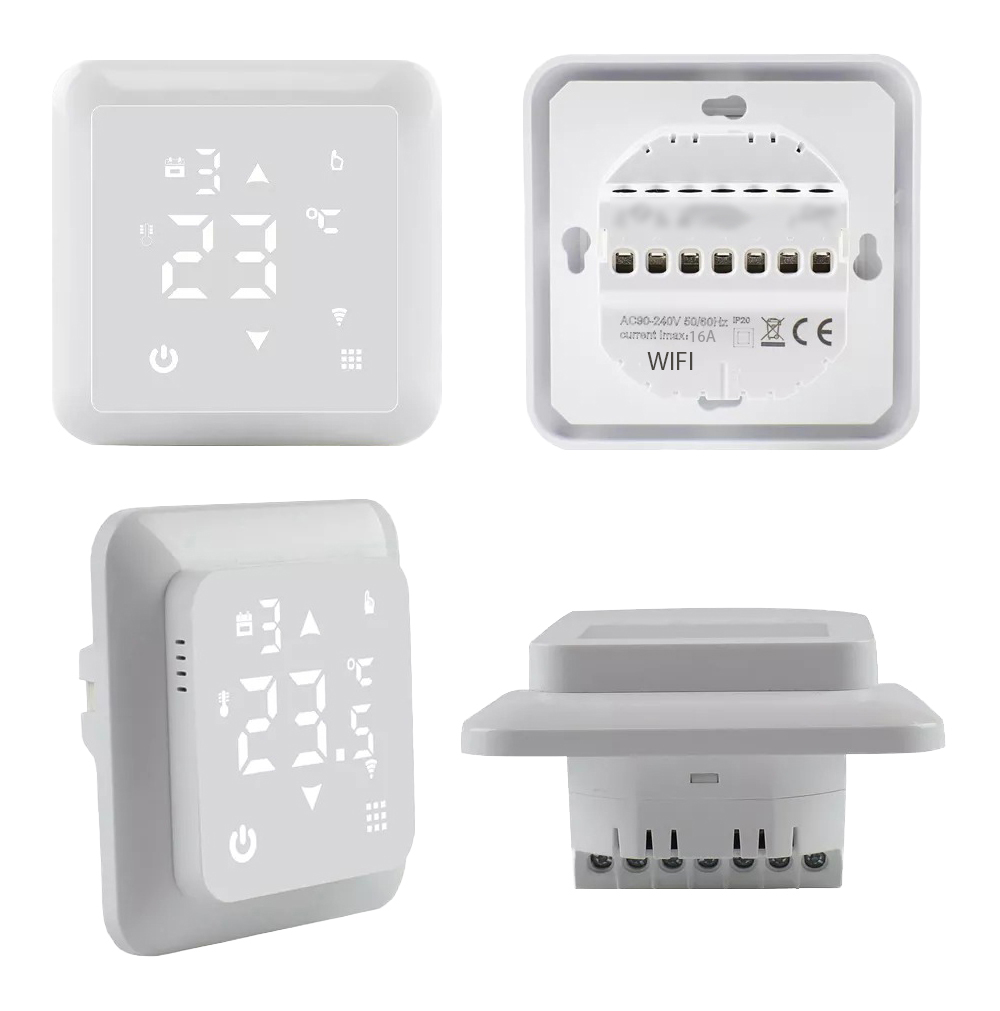

Smart Thermostat | 16A | WiFi | TUYA Smart

▶️ For underfloor heating, radiators, and water/gas boilers

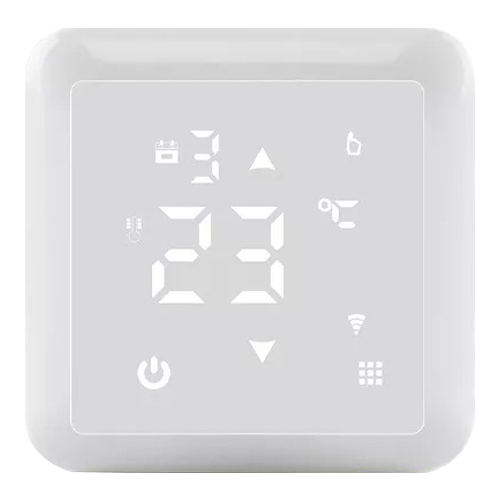

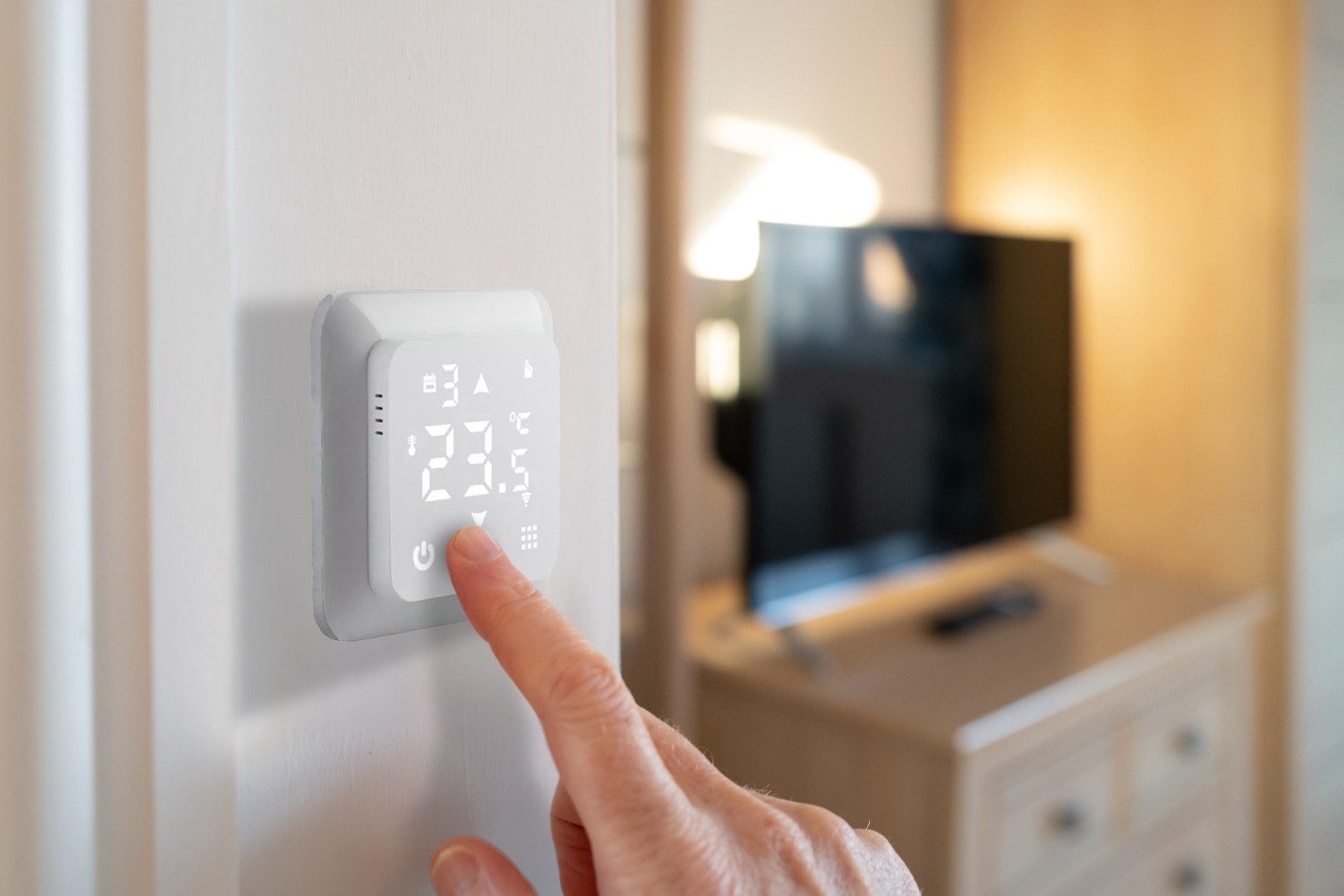

✨ Modern design with touch panel and simple operation

✅ Precise built-in temperature sensor + option to choose floor or air sensor

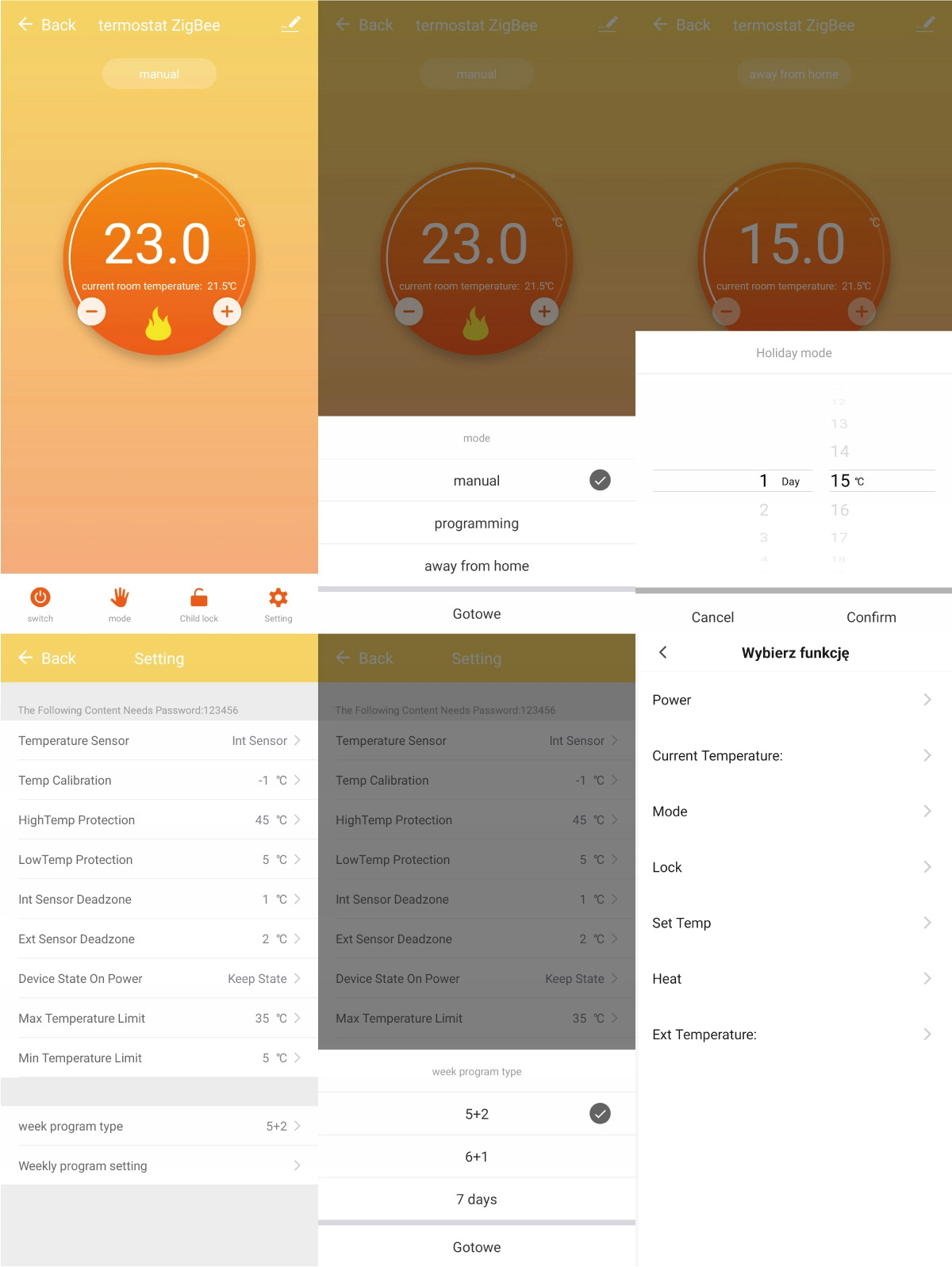

✅ Touch control, TUYA app (iOS/Android), Google Home and Alexa

✅ Operating modes: manual, programmable, holiday

✅ Weekly programming: 7 days, up to 6 cycles per day (5+2, 6+1, 7)

✅ Additional functions: child lock, temperature correction, hysteresis

✅ Automation based on heating status – relay connection possible

✅ Fits standard 60mm flush-mounted boxes

✅ Connects to home WiFi – no gateway or port configuration required

⏰ Heating Management

Schedule for 7 days a week, up to 6 cycles per day. Allows optimizing heating at night or when residents are away. Adjustments can be made from any location via the app.

▶️ Automations

Create smart scenarios in the TUYA app by connecting the thermostat with other smart devices. Reactions can be set based on schedules, location, weather, and status of other devices.

✨ Smart Home in Your Hand

• Integration with over 11,000 devices in the TUYA app
• 30 device categories (control, climate, monitoring, etc.)
• Free app on iOS and Android, in Polish
• Remote, voice, and touch control
• Create advanced scenarios and automations

Build Your Own Smart Home

No wires! The thermostat works wirelessly with other devices in the TUYA ecosystem, enabling automation networks, alarm systems, and smart notifications.

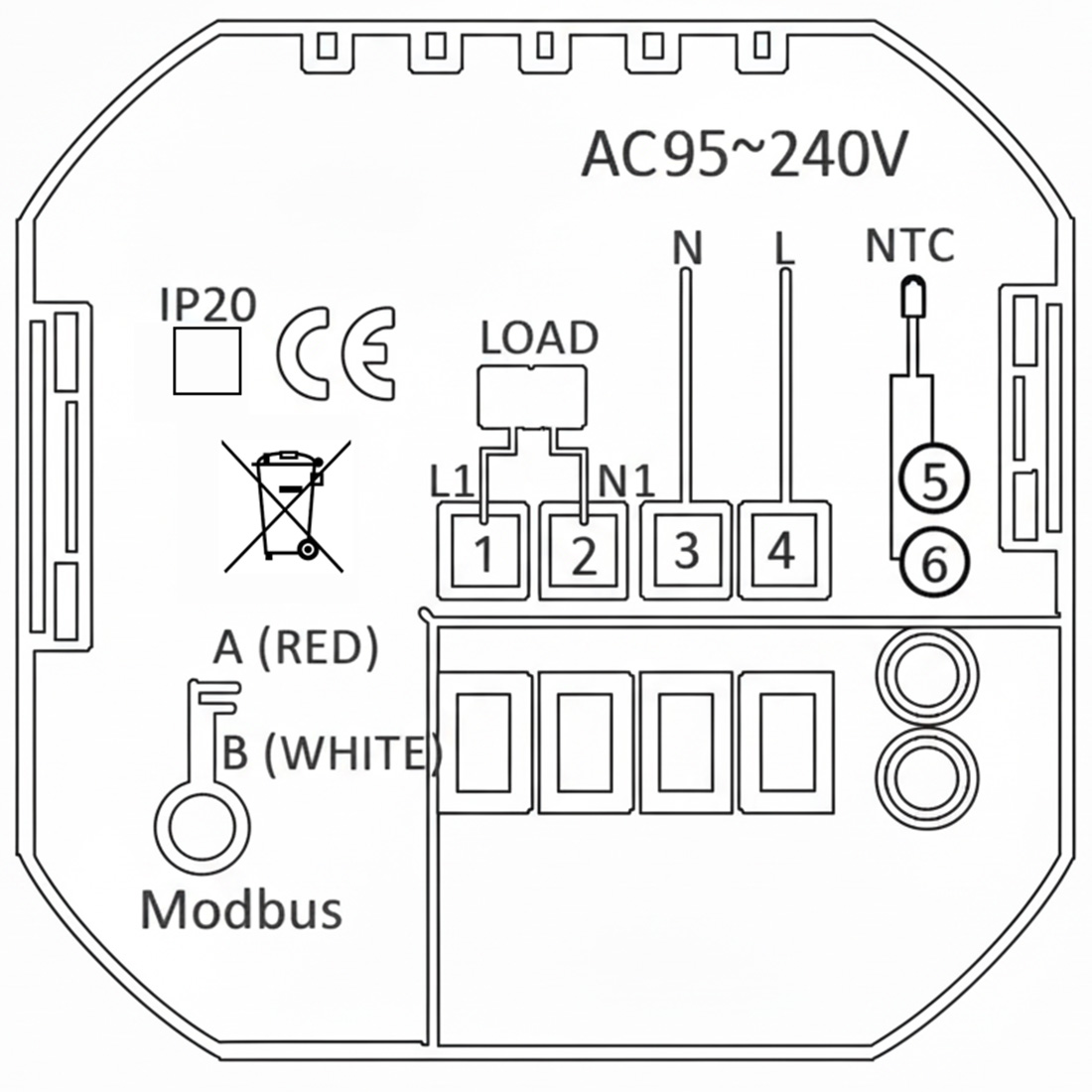

ℹ️ Wiring Diagram

ℹ️ Specifications:

• App: TUYA Smart
• Communication: WiFi 2.4 GHz
• Max Load: 16 A
• Power Supply: 230V AC, 50~60 Hz
• Sensor: NTC 10K 2.5 m (included)
• Accuracy: ±0.5°C
• Temperature Setting Range: 5–35°C
• Displayed Temperature: 0–70°C
• Operating Temperature: 0–45°C
• Operating Humidity: 5–95% RH
• Button Type: touch
• Fits Boxes: 60 mm
• Dimensions: 82 × 82 × 20 mm
• Protection Class: IP20

ℹ️ Package Includes:

• TR081 Thermostat
• NTC 10K 2.5 m Sensor
• Manual
• Mounting Screws

Product Code: TR081
