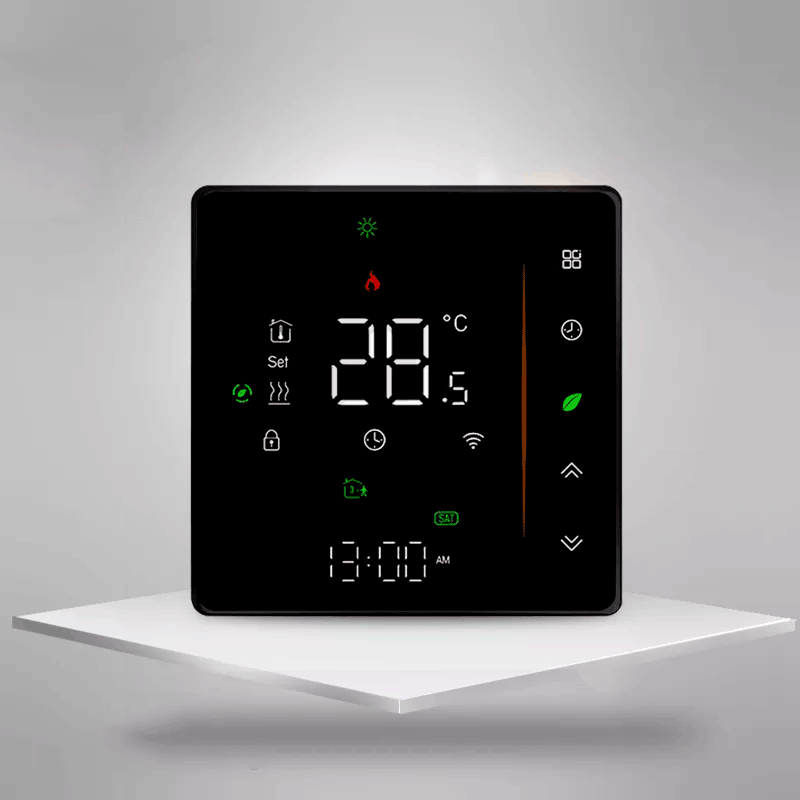

Smart ZigBee Thermostat

For Boilers & Heaters | TUYA Smart | LED Display

✅ Precise Temperature Control

Built-in temperature sensor with the option to connect an external NTC3950, 10K floor sensor (not included).

✅ LED Display with Brightness Adjustment

Large LED display allows for clear control and brightness adjustment in day and night modes.

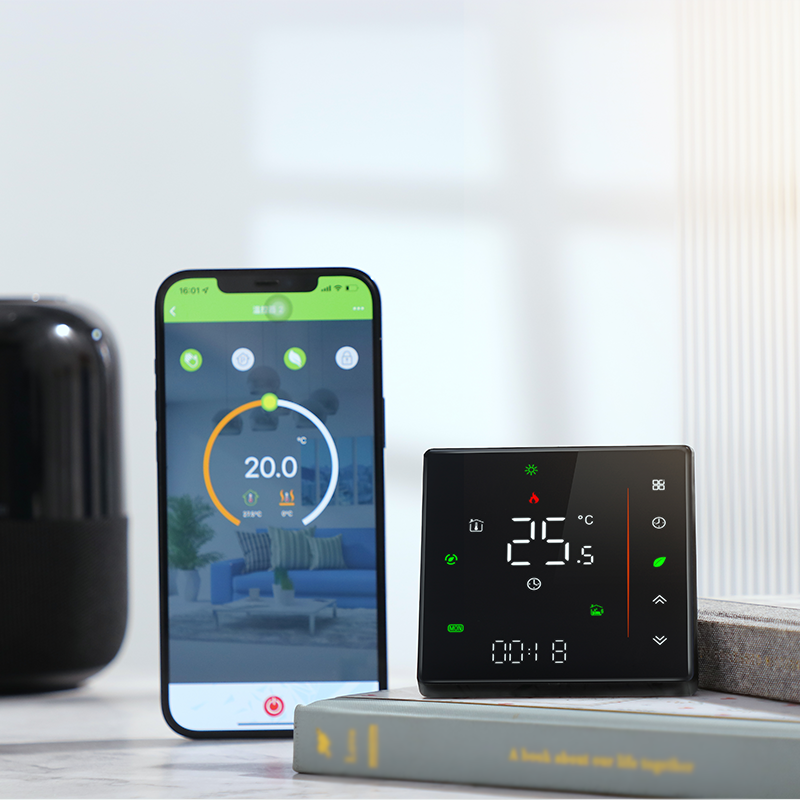

✅ App & Touch Control

Control via TUYA Smart, Smart Life apps or directly on the thermostat’s touch panel.

✅ Smart Scenarios

Create your own automations and schedules in the TUYA app.

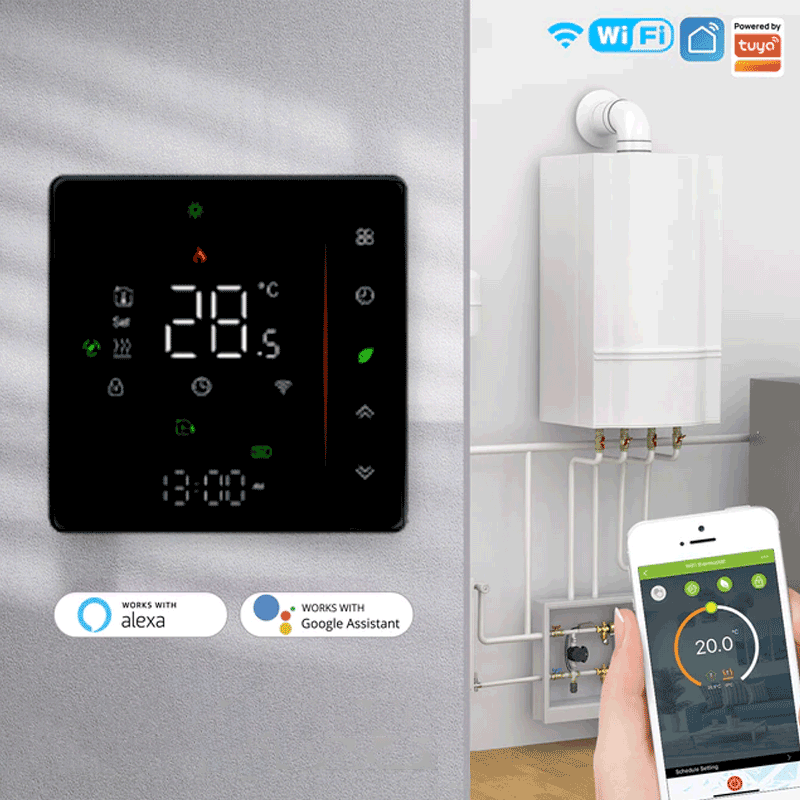

✅ Voice Assistant Compatibility

Works with Google Home and Amazon Alexa for voice control and Smart Home integration.

ℹ️ Note:

A ZigBee gateway is required for proper operation (available in our offer).

⚡ Heating Management

Set a 7-day schedule with up to 4 cycles per day. Easily adjust the temperature to suit household presence, night mode, or absence, with all changes made remotely via the app.

▶️ Automations

Connect multiple smart devices with the thermostat to automatically perform scheduled scenarios in the TUYA app. Create unlimited custom automations.

• ▶️ Automations in manual or programmable modes
• ▶️ Reactions to user location, schedules, other device functions, and weather changes

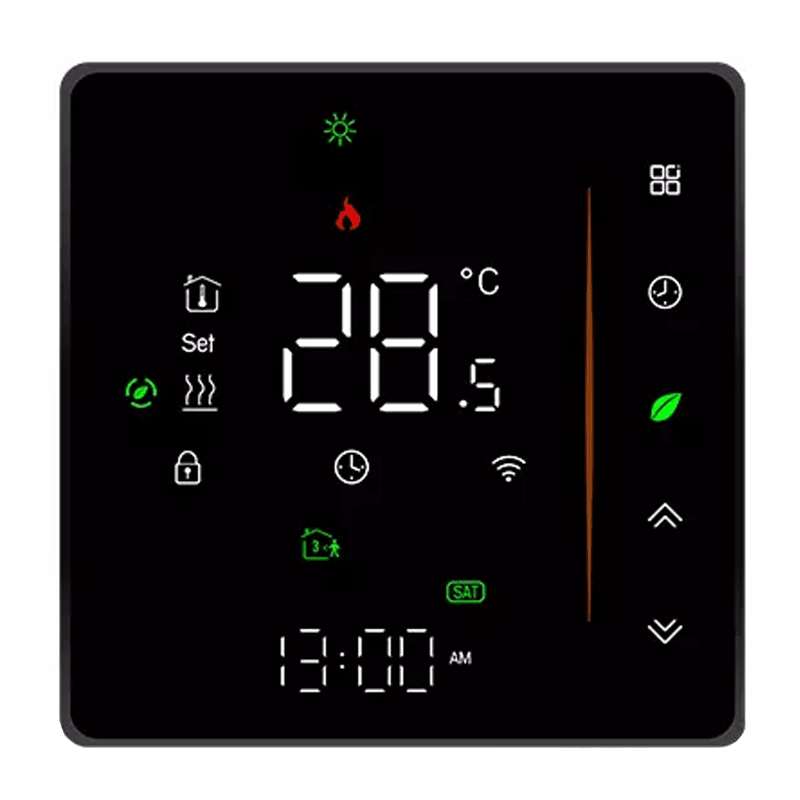

▶️ Intuitive Touch Panel

Large touch screen with two brightness modes (6:00–22:00 and 22:00–6:00). Perfect for modern interiors, featuring child lock and quick access to basic settings via the TUYA app.

▶️ Build Your Smart Home

No drilling or wiring required. The thermostat connects wirelessly with other TUYA devices in the cloud, allowing you to control lighting, alarms, and air conditioning.

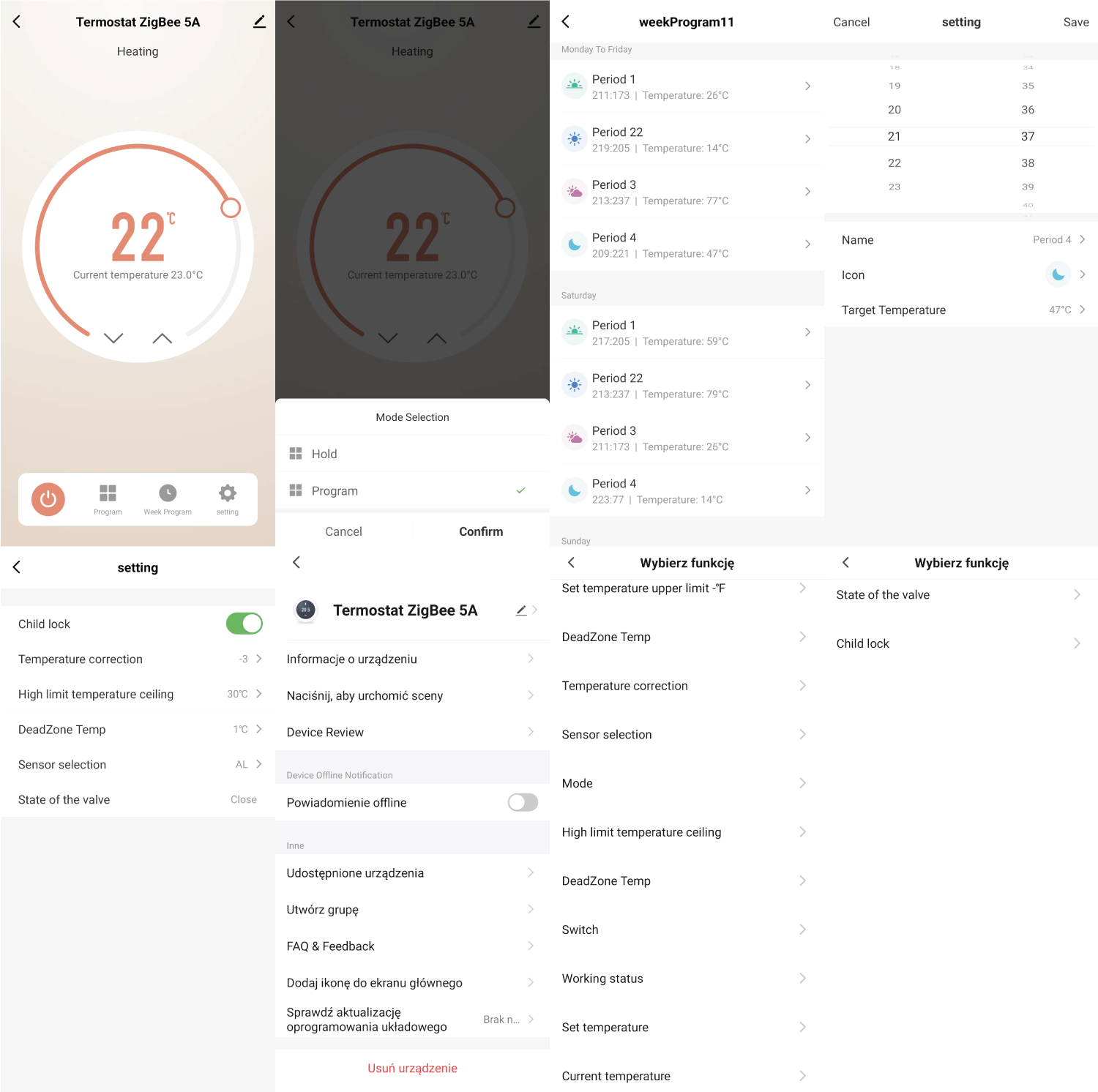

▶️ Tuya Smart App

Free iOS and Android app lets you control all TUYA devices at home. Supports WiFi, Bluetooth, ZigBee, and integrates with voice assistants. Advanced automation, notifications, and device history available in the app.

▶️ ZigBee Protocol

2.4 GHz MESH connectivity – every device works as a signal repeater. Fast response (0.2 s), supports over 50 devices in the network. Minimal energy consumption, long battery life, with device history and parameters stored in the ZigBee hub.

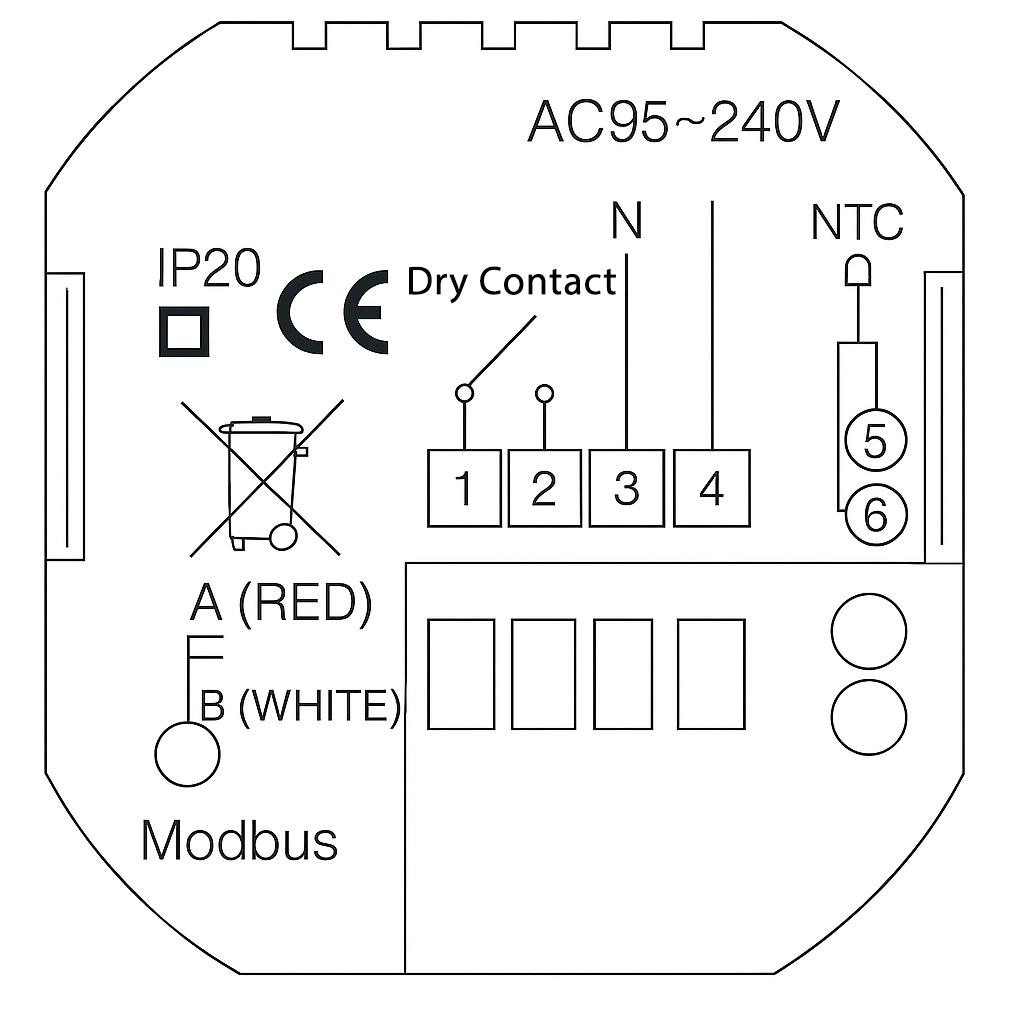

ℹ️ Wiring Diagram

ℹ️ Specifications:

• Max Load: 5 A
• Communication: ZigBee 3.0
• Power Supply: 95-240 V AC, 50~60 Hz
• External Sensor Support: NTC3950, 10K
• Accuracy: ±1°C
• Temperature Setting Range: 5°C - 35°C
• Floor Temperature Range: 5°C - 99°C
• Display Temperature Range: 5°C - 99°C
• Operating Temperature: 0°C ~ 45°C
• Operating Humidity: 5% ~ 95% RH
• Power Consumption:
• Material: PC + ABS (fire-resistant)
• Fits standard 60 mm wall boxes
• Dimensions: 86 x 86 mm
• Protection Class: IP20
• Buttons: Touch

ℹ️ Included in the Package:

• 5 A Relay Thermostat
• User Manual
• Mounting Screws

Product Code: TRZ065C
