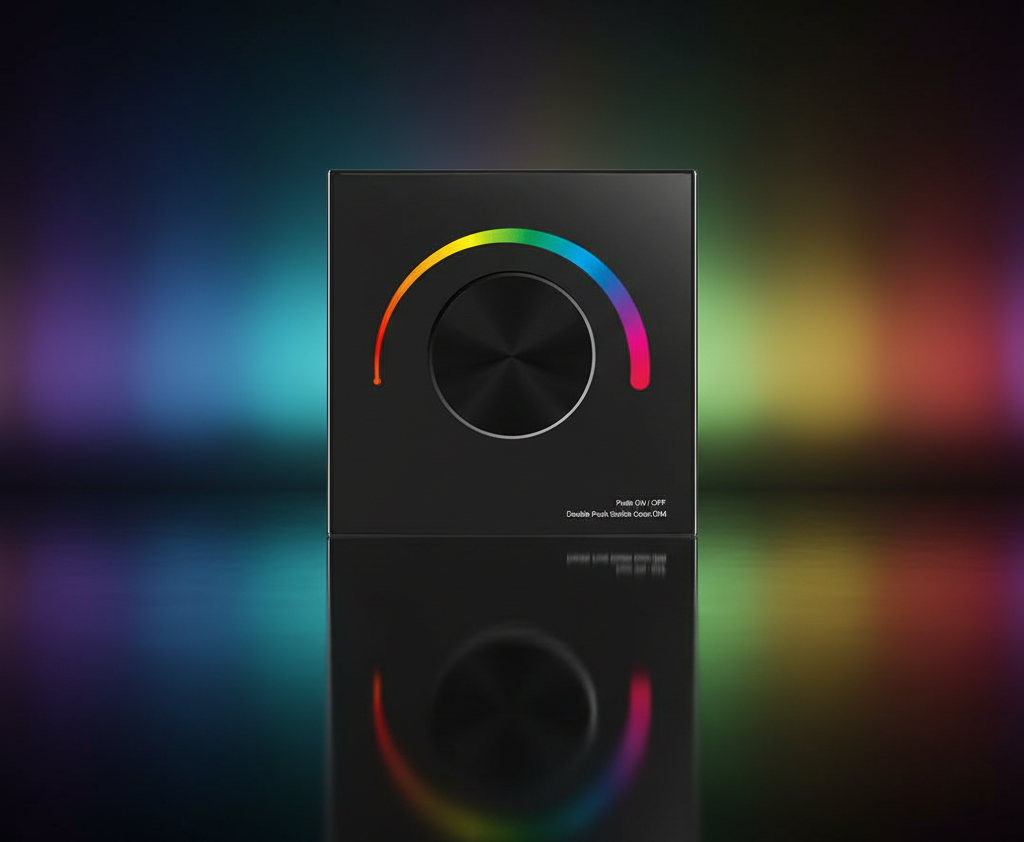

RGB Flush-Mount Controller

RF 2.4 GHz | LED RGB Strip Control | Tuya Smart

• ✅ PWM Controller: High-quality 3-channel controller for RGB LED strips.

• ✅ Smooth Dimming: Adjustable from 0% to 100% in 256 levels, flicker-free.

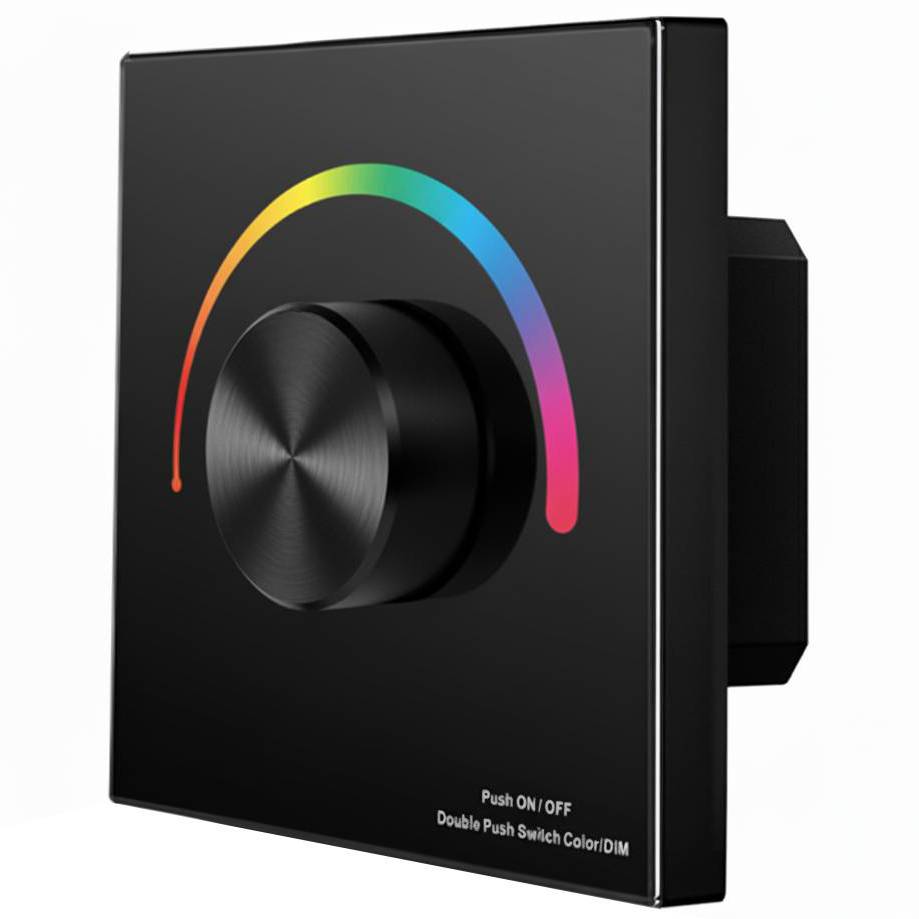

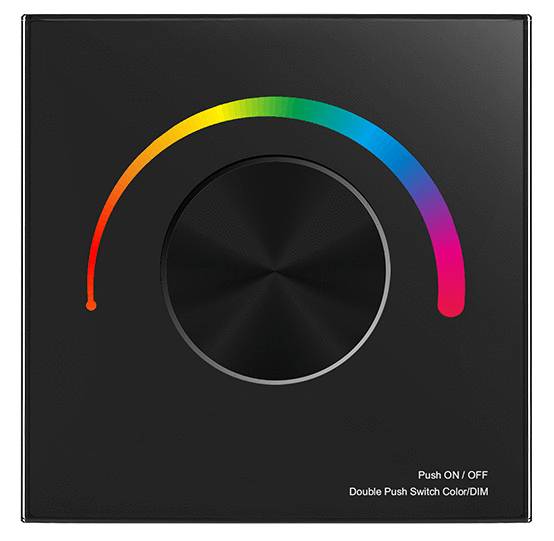

• ✅ Design: Elegant appearance available in white or black glass finish.

• ✅ Installation: Standard 86 mm size allows neat mounting in European wall boxes.

▶️ Control and Features (RGB)

• ✅ Single Press: Turn lights on/off.

• ✅ Rotate: Change RGB color (60 colors, 3 rotations) or brightness.

• ✅ Double Press: Switch mode – adjust RGB color or brightness.

• ✅ Long Press (1–6 s): Continuous adjustment of saturation or brightness in 256 levels.

• ✅ Remote Support: Compatible with RF 2.4 GHz single or multi-zone remotes from SD Series.

• ✅ PWM Frequency: 2 kHz or 8 kHz selectable.

• ✅ Durability: Overheat, overload, and short-circuit protection with automatic recovery.

▶️ Power and Installation

• ✅ Power Supply: 12–48 V DC

• ✅ Installation: Standard European wall box (86 mm)

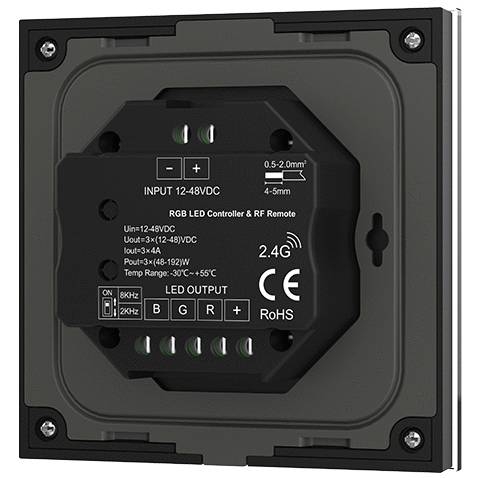

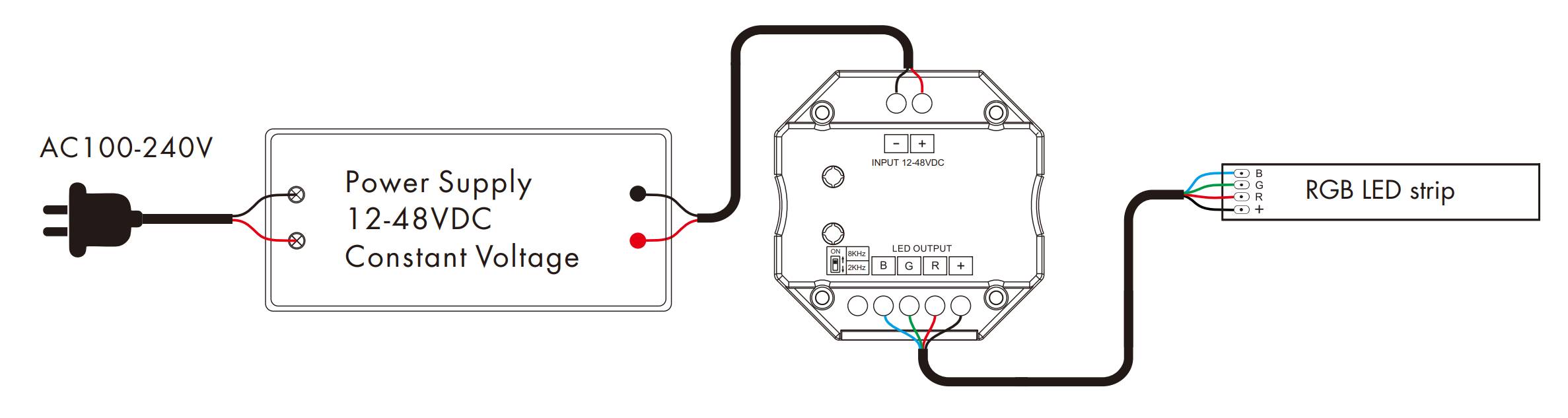

• ✅ Connection: 12–48 V DC power input and wires to RGB LED strip

ℹ️ Specifications

▶️ Power and Current

• Input Voltage: 12–48 V DC

• Max Input Current: 12.5 A

• Output Voltage: 3 × 12–48 V DC

• Output Current (load): 3 CH, 4 A/CH

• Max Output Power: 3 × 48–192 W

▶️ Lighting

• Light Type: RGB

• PWM Frequency: 2 kHz / 8 kHz

▶️ Communication

• RF 2.4 GHz

▶️ Operating Conditions

• Ambient Temperature: -30 °C – +55 °C

• Max Case Temperature: +85 °C

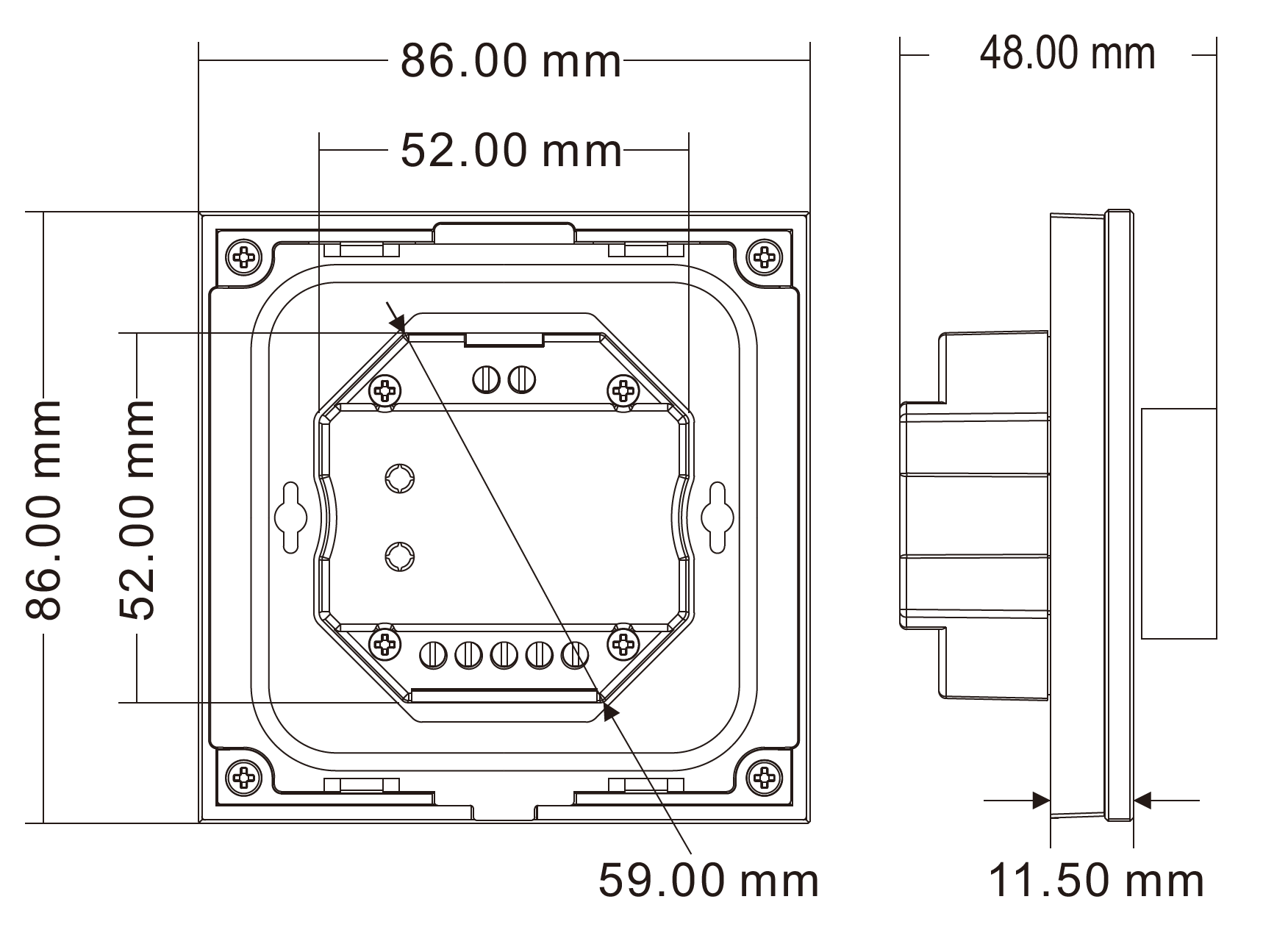

▶️ Dimensions and Mounting

• Standard European wall box: 86 mm

• Panel Dimensions: 86 × 86 mm

ℹ️ Included in the Package

• RGB LED DIM Controller 12–48V, Knob, Black, SD Series RF 2.4GHz

• User Manual

• Packaging

Product Code: LC053C
