Relay Module | OXT Mini | ZigBee | TUYA

▶️ Turn a traditional switch or socket into a smart device controlled via the TUYA Smart app!

▶️ The compact ZigBee in-wall module lets you automate your home without replacing your electrical system.

▶️ Control and Compatibility

• ✅ Works with different switches: compatible with both toggle (bistable) and push-button (monostable)
• ✅ 2-way / cross switch support: integrates with traditional wiring setups
• ✅ Versatile use: control any load within the module’s power limits

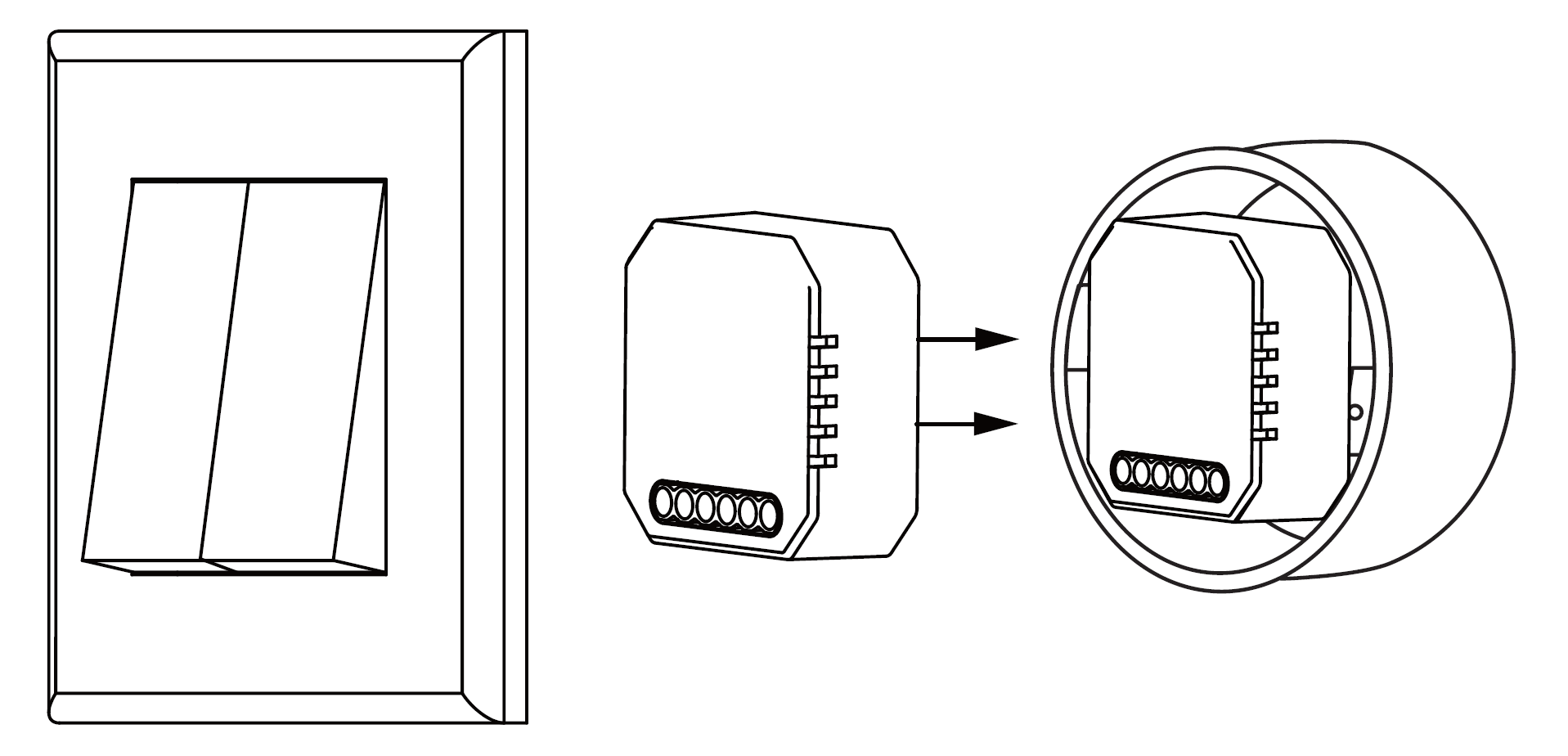

• ✅ Compact design: fits into a standard electrical wall box

▶️ Remote Control

• ✅ Remote access: manage from anywhere via Tuya Smart or Smart Life app
• ✅ Voice control: compatible with Amazon Alexa and Google Home

▶️ Automation & Scenes

• ✅ Timers & schedules: set up automatic switching
• ✅ Smart scenarios: create rules based on time, weather, or location

▶️ Ecosystem

• ✅ Part of the TUYA ecosystem: supports scenes and automation rules in the app

⚠️ A ZigBee gateway is required.

ℹ️ You can find compatible models in our offer

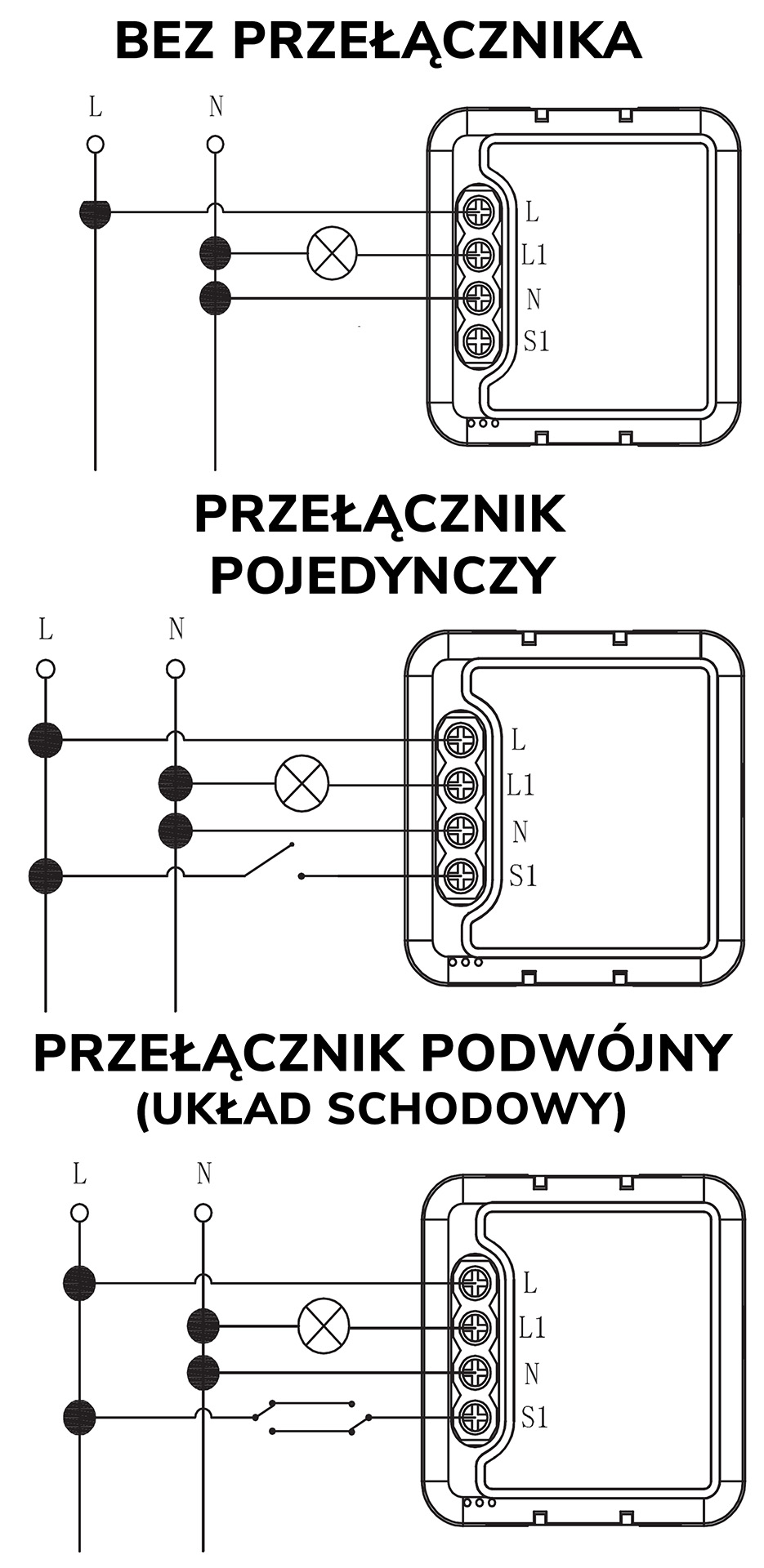

ℹ️ Wiring Diagram

✅ ZigBee Technology

• ▶️ MESH network – every powered ZigBee device extends the signal

• ▶️ Fast response – reaction time from as low as 0.2 seconds

• ▶️ Stable operation – even with many devices connected

• ▶️ Event history – access data from previous months

• ▶️ Energy efficiency – ideal for automation and battery-powered devices

ℹ️ Specifications:

▶️ Communication & Control

• Protocol: ZigBee 3.0
• App: Tuya Smart / Smart Life

▶️ Technical Parameters

• Power supply: 90–250 V AC / 50 Hz
• Max load: LED 250 W / resistive 2000 W
• Max current: 10 A
• Wiring: requires both L and N

ℹ️ Package includes:

• 1× OXT Mini ZigBee TUYA Module
• 1× Mounting clip
• 1× User manual

Product code: T261
