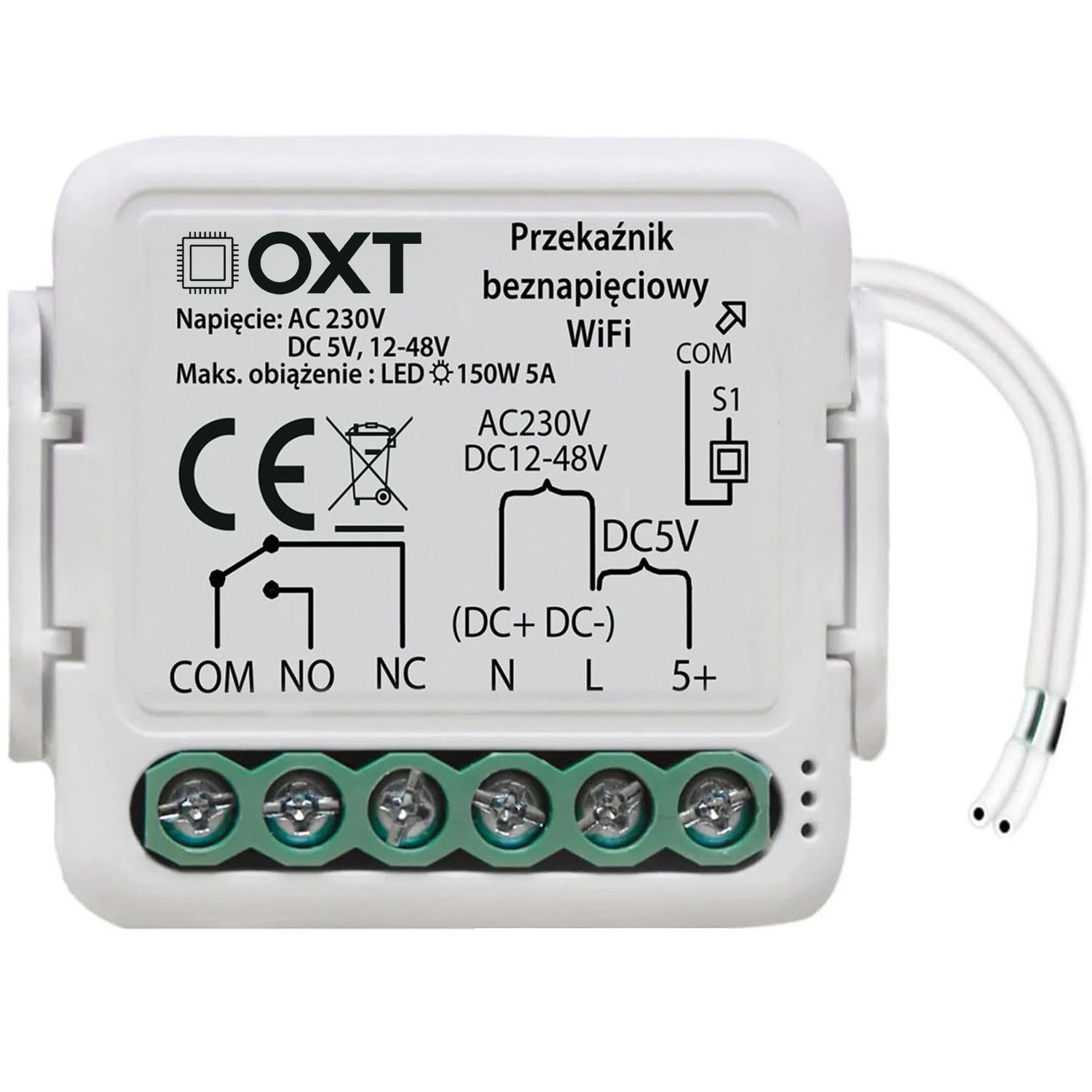

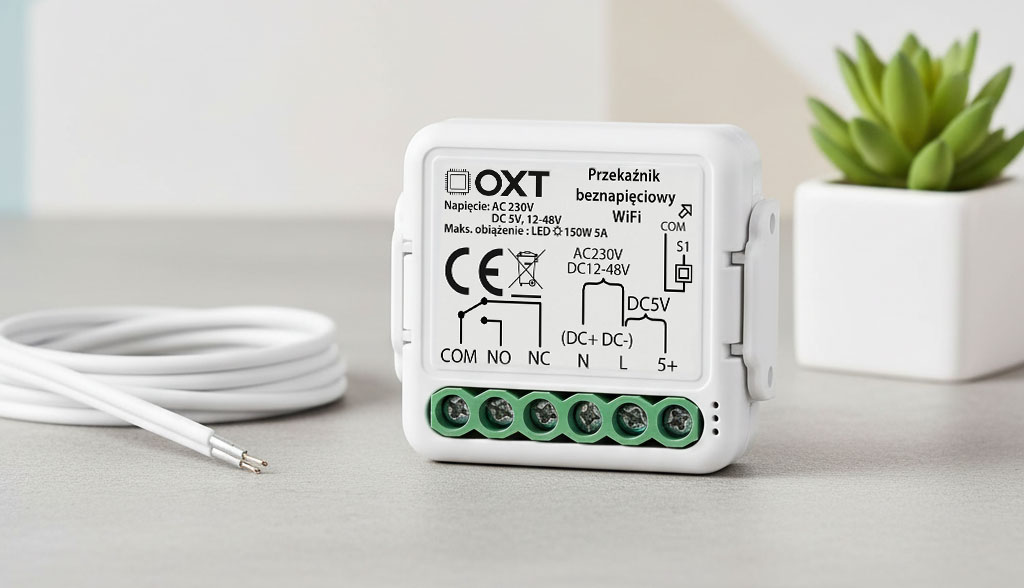

OXT Mini Module | Smart Voltage-Free Relay

12-48 V DC | 230 V AC | WiFi | TUYA

▶️ Compact WiFi module enabling remote control of electrical devices with multiple power options and a voltage-free relay interface.

▶️ Control & Automation

• ✅ Remote control from anywhere using TUYA Smart / Smart Life app
• ✅ Operating modes in the app: monostable (momentary), bistable, or bistable with button synchronization
• ✅ Create advanced scenarios and automations based on weather, time, sunrise/sunset
• ✅ Timers and schedules for automatic device switching
• ✅ Voice control via Amazon Alexa and Google Assistant
• ✅ Control lights, gates, actuators, computers, access control, heating systems, and 230V devices

▶️ Power & Relay Ports

• ✅ Power options: AC 230V, DC 12-48V, or DC 5V
• ✅ Relay ports: NC (Normally Closed), COM (Common), NO (Normally Open)
• ✅ Behavior after power loss: ON / OFF / remember last state

▶️ Design & Installation

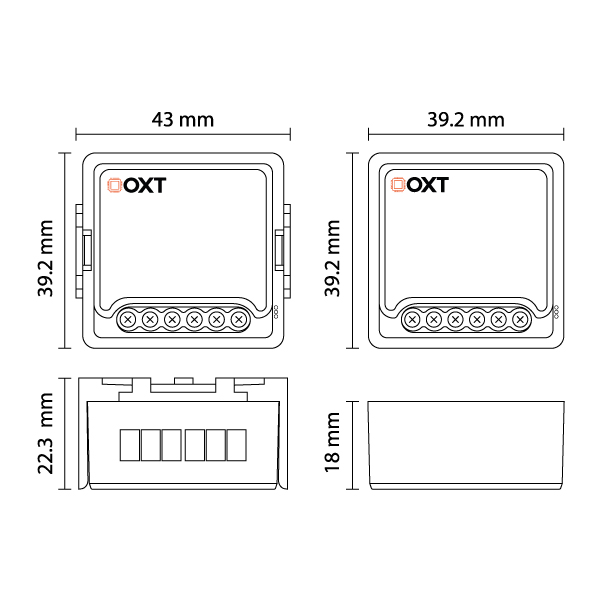

• ✅ Compact dimensions – fits inside standard switch boxes

ℹ️ Wiring Diagram

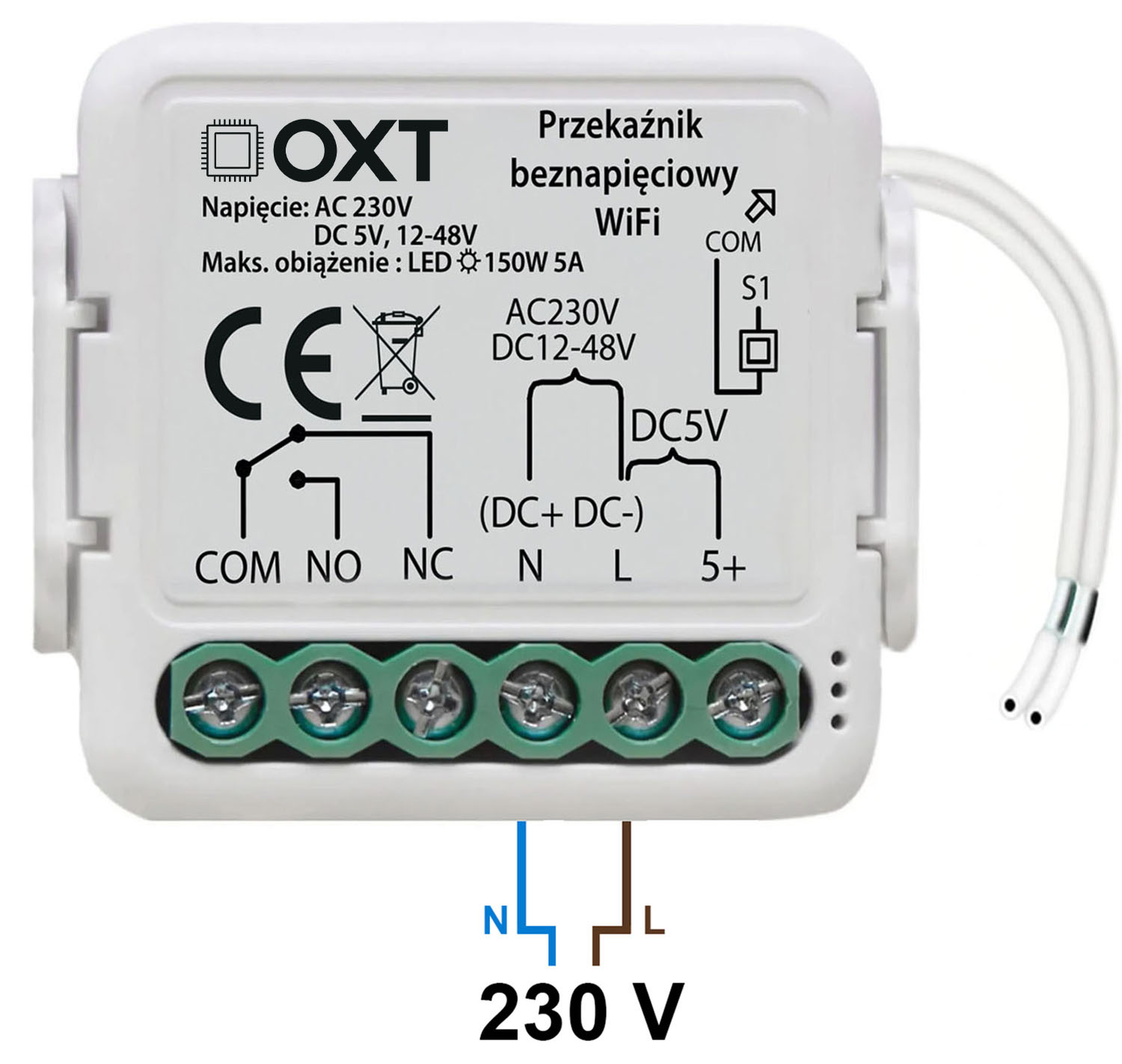

• 230V AC: blue (N) neutral, brown (L) live

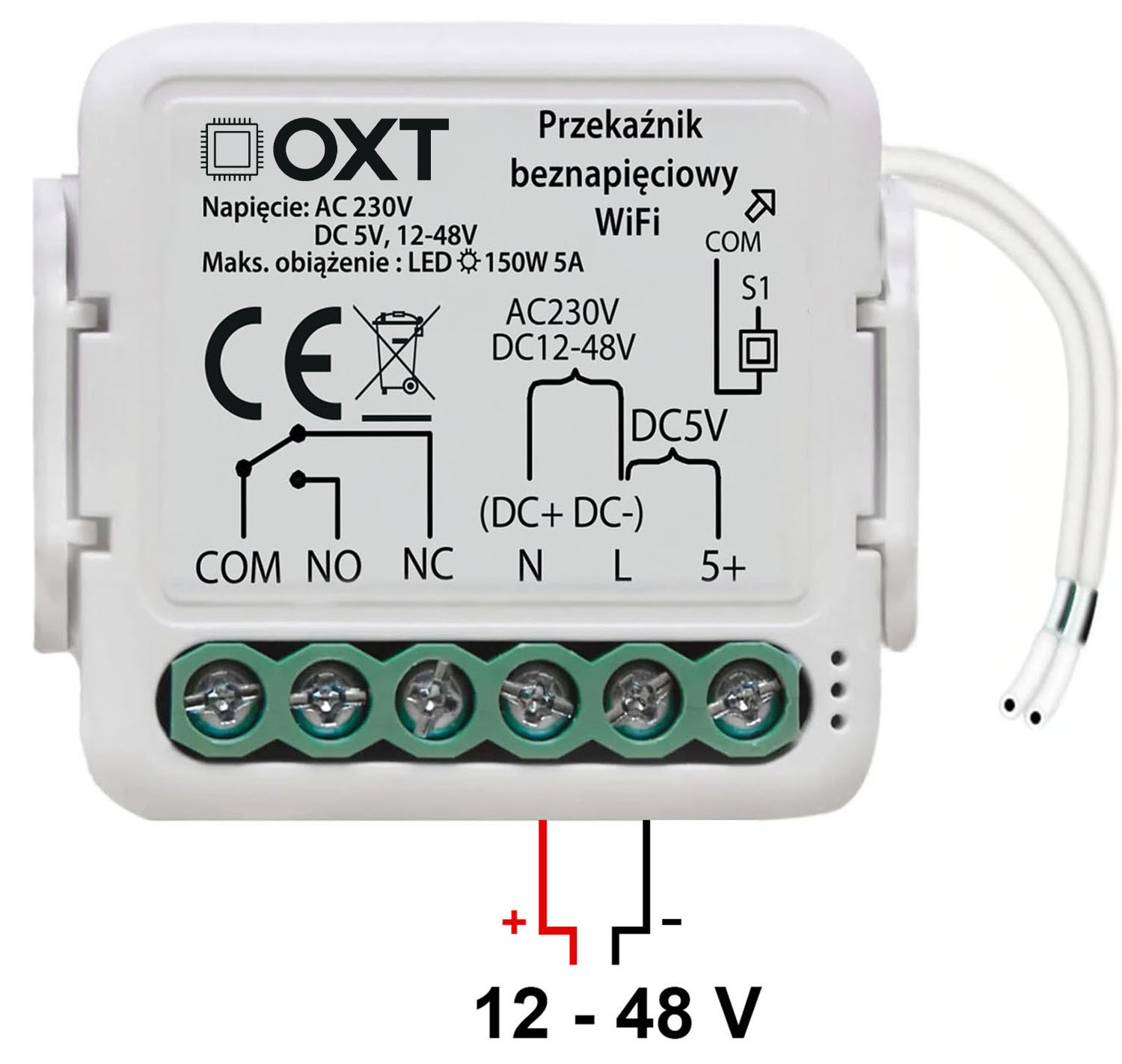

• 12-48V DC: red "+" to N, black "-" to L

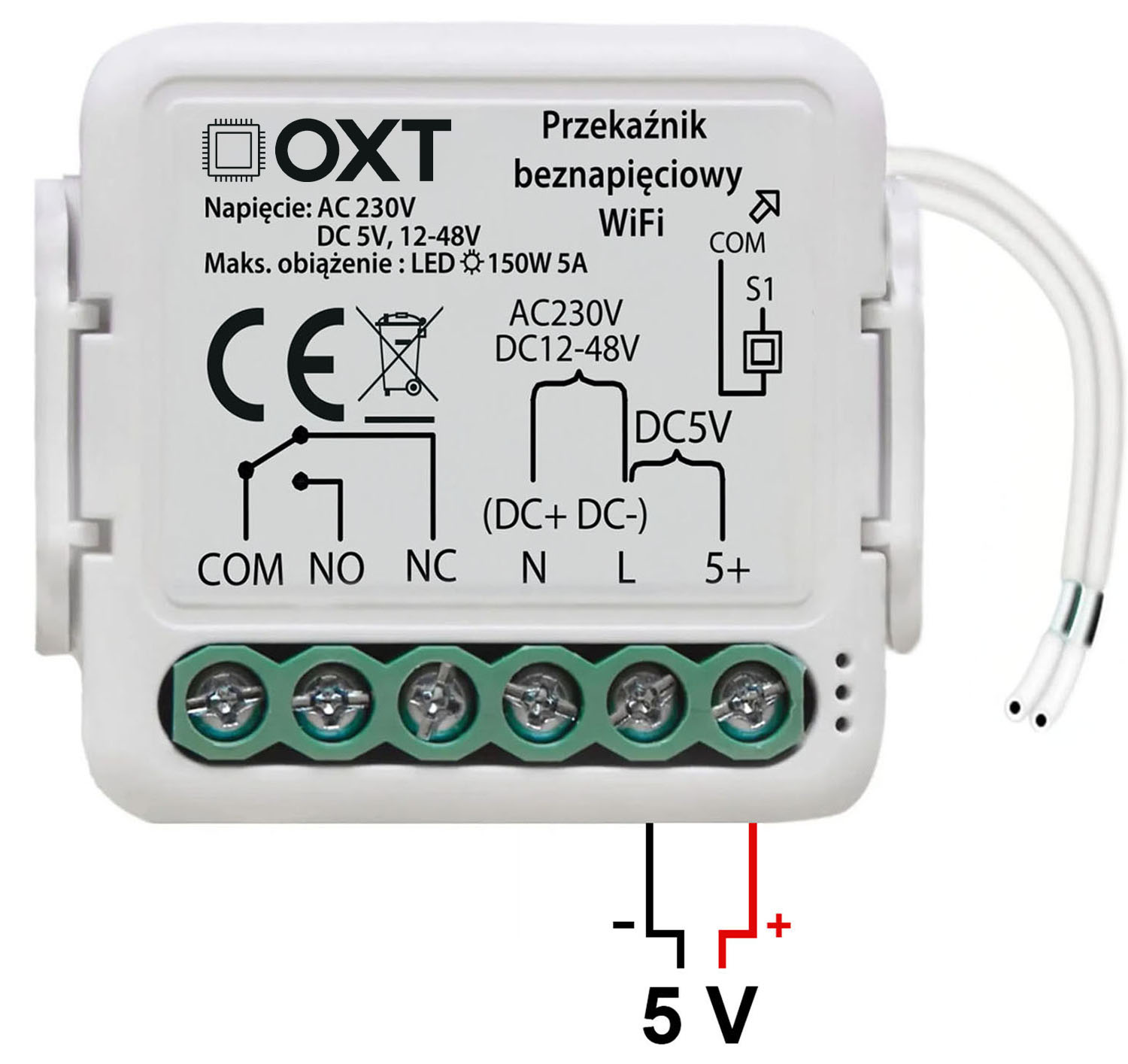

• 5V DC: red "+" to 5+, black "-" to L

ℹ️ TUYA App Screenshots

▶️ Build Your Smart Home

No wiring required – the module works with other peripheral devices via TUYA cloud.

Create advanced scenarios, alerts, and alarm systems. Compatible device list is continuously updated.

ℹ️ Specifications

• App: TUYA Smart / Smart Life
• Communication: WiFi 2.4 GHz
• Power supply: AC 230V, DC 12-48V, DC 5V
• Frequency: 50/60 Hz
• Max load current: 5A
• Max LED power: 150W

ℹ️ Package Includes

• OXT Mini voltage-free relay 12-48V DC / 230V AC WiFi TUYA
• Mounting clip
• User manual

Product Code: T210DC
