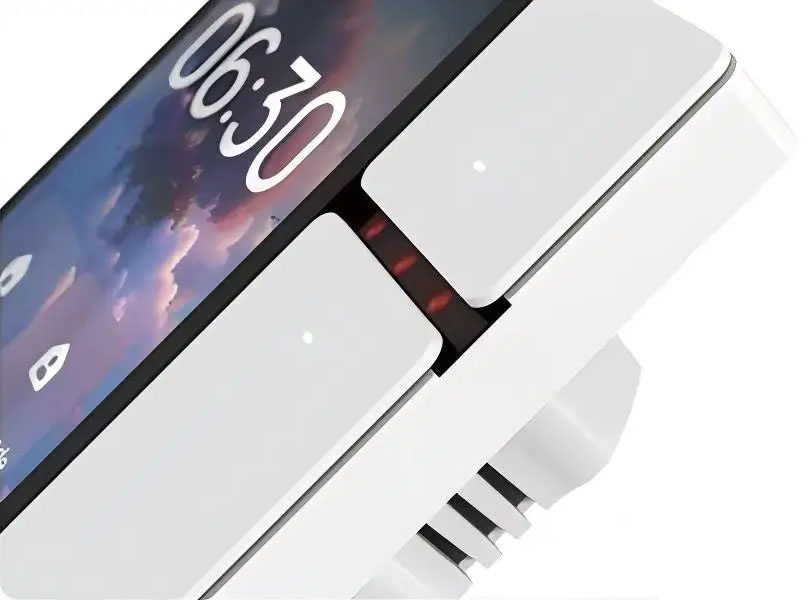

3.5" Touch Panel | White

BT Mesh Gateway | 3 Buttons | IR | WiFi TUYA

Compact Smart Home Control Center

▶️ Touch control with 3 programmable physical buttons

▶️ Built-in Bluetooth Mesh Gateway and IR Remote Copy function

▶️ Control Tuya Smart devices via WiFi, Bluetooth, and Infrared – all in one place

⭐ Interface Available in English!

▶️ Display & Control

  • 3.5" IPS Screen with 480×320 resolution – clear image and easy navigation
  • 3 illuminated physical buttons – quick access to lights, scenes, or automations
  • Customizable interface – design your own button layouts and assign functions
  • Screensaver modes – digital photo frame, slideshow, or clock

▶️ Control & Integrations

  • Control via TUYA Smart | Smart Life app – full access anytime, anywhere
  • Zone management – control a single room, multiple rooms, or the whole house
  • Alarm system integration – instant response to events

▶️ IR Remote Function

  • Built-in IR module – control TVs, air conditioners, gates, and more
  • 3 IR transmitters for extended coverage
  • Supports 110+ devices across 12 categories

▶️ Bluetooth Mesh Gateway

  • BLE Mesh connectivity – integrate Bluetooth devices with your WiFi network
  • ✅ Stable support for up to 128 SigMesh devices

▶️ Customize Your Panel

Personalization & Automation

Both the physical and on-screen buttons can trigger scenes, automations, or individual devices. For example, set one button to turn on the lights, another to start the AC, and a third to activate a “Good Night” scene that powers off devices or dims the lights.

▶️ Live Camera View

The device supports live video preview from compatible Tuya cameras.

▶️ BLE Mesh Technology

Reliable Smart Home Network

Bluetooth Low Energy Mesh allows you to build an extended, stable, and energy-efficient network, supporting up to 128 devices simultaneously.

ℹ️ Wiring Diagram:

ℹ️ Specifications:

▶️ App & Connectivity

  • App: Tuya Smart | Smart Life
  • Connectivity: WiFi 2.4 GHz, IR, Bluetooth

▶️ Power & Performance

  • Power supply: 100–240V AC 50/60 Hz
  • Max load: 600W (200W/channel)
  • Operating temperature: 0~40°C
  • Humidity: 5–90% RH

▶️ Display & Control

  • Screen: 3.5" IPS 480×320
  • Max devices: 128
  • Port: USB-C

▶️ Dimensions & Design

  • Size:

86 × 86 × 11.5 mm (without base)

86 × 86 × 35.5 mm (with base)

  • Weight: 153 g
  • Color: White

ℹ️ Product Code: T535

✨ Also Available in Gray – Model T535C ✨
