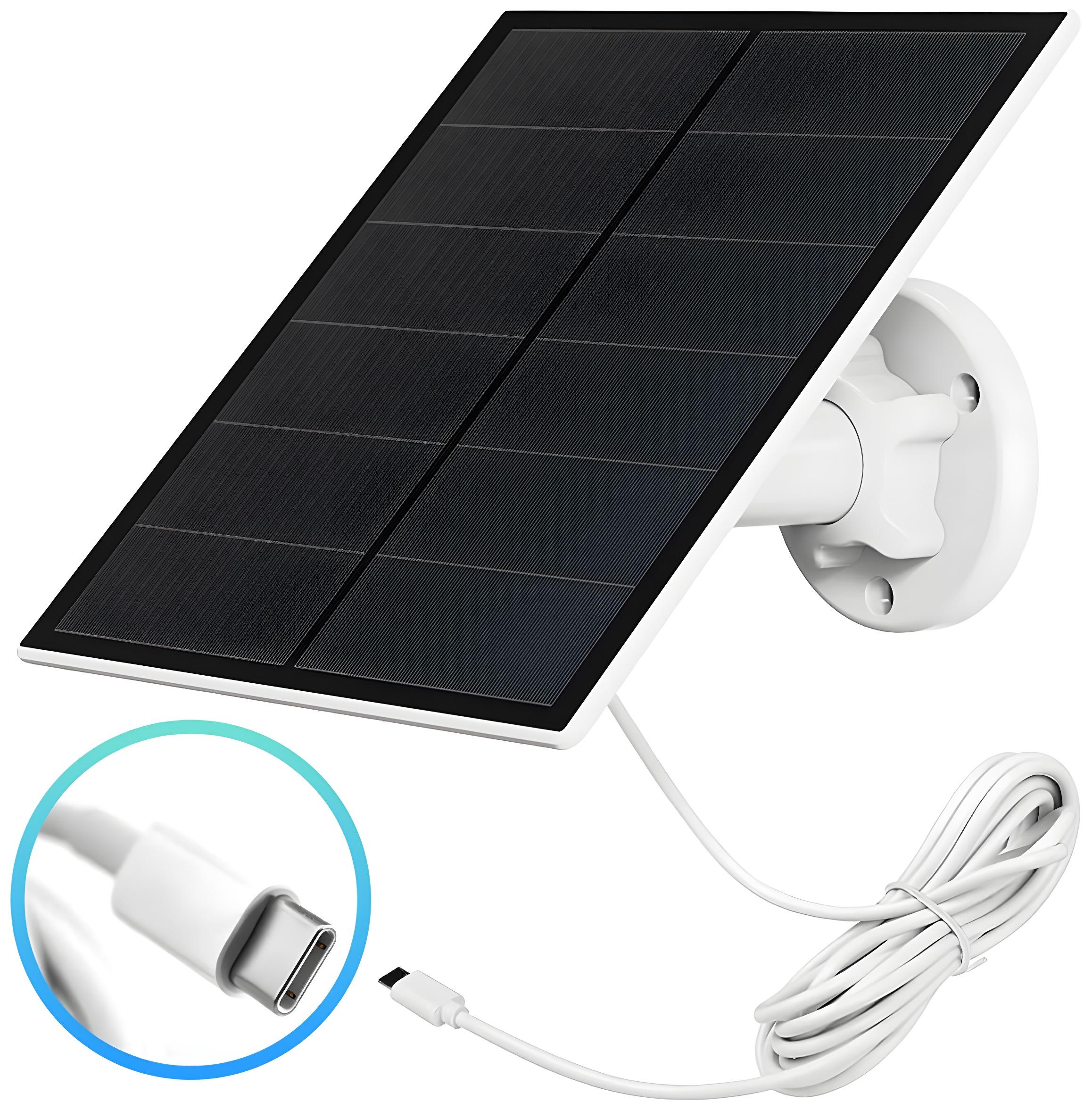

Solar Panel for Camera | Waterproof | 5W | USB-C

▶️ High-efficiency solar panel providing additional power for external battery cameras.

ℹ️ Works perfectly with battery cameras like CMT32, ensuring continuous operation even in locations without a constant power source.

▶️ Durability and Materials

✅ IP65 Rating: High resistance to rain, snow, sun, and extreme temperatures

✅ ABS Material: Durable plastic resistant to mechanical damage and weather conditions

▶️ Application

✅ 5V Panel: Designed for charging and powering external battery cameras

▶️ Adjustment and Mounting

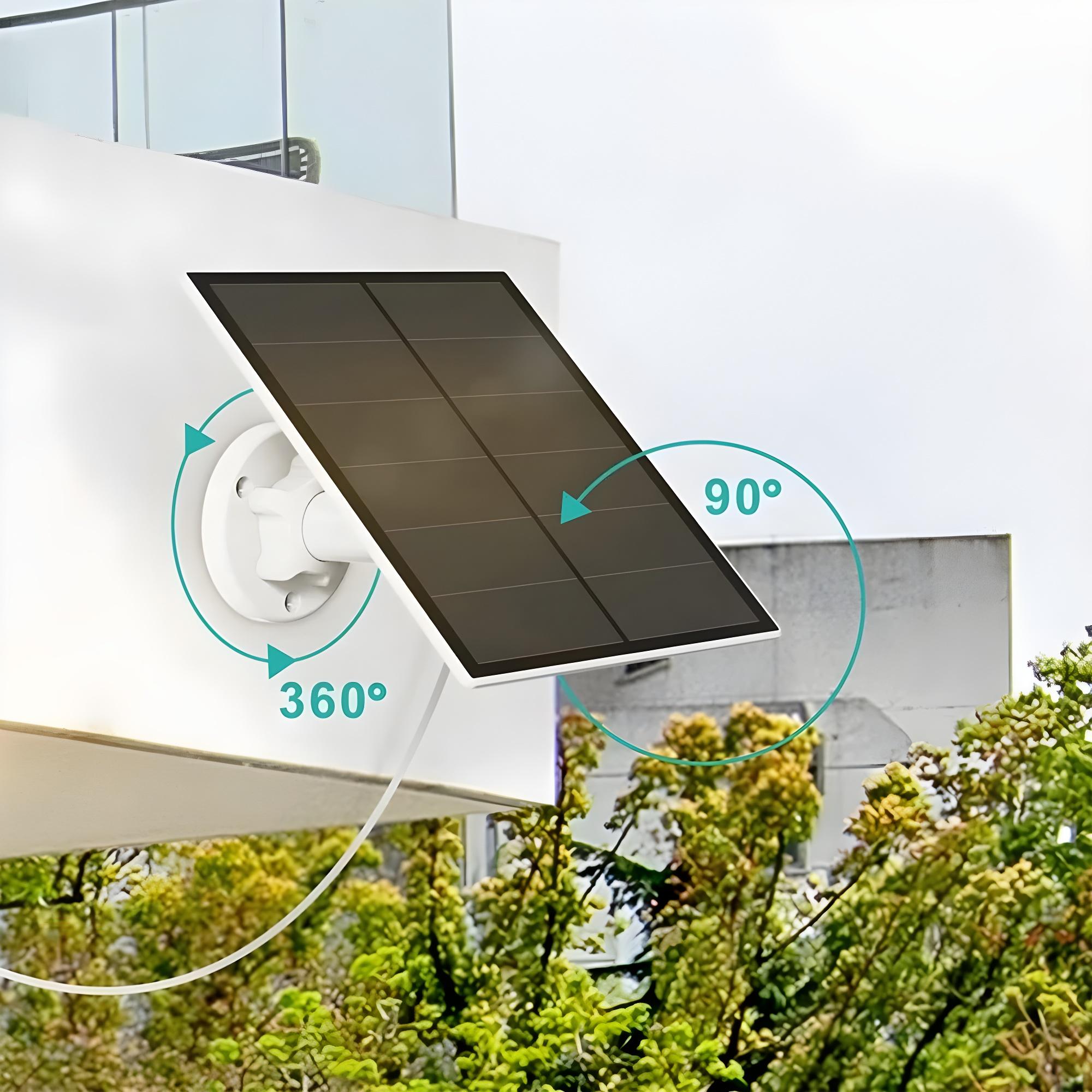

✅ Adjustable Panel: 360° rotation and 90° tilt for optimal positioning

✅ Stable Base: Ensures secure and stable mounting to surfaces

▶️ User Convenience

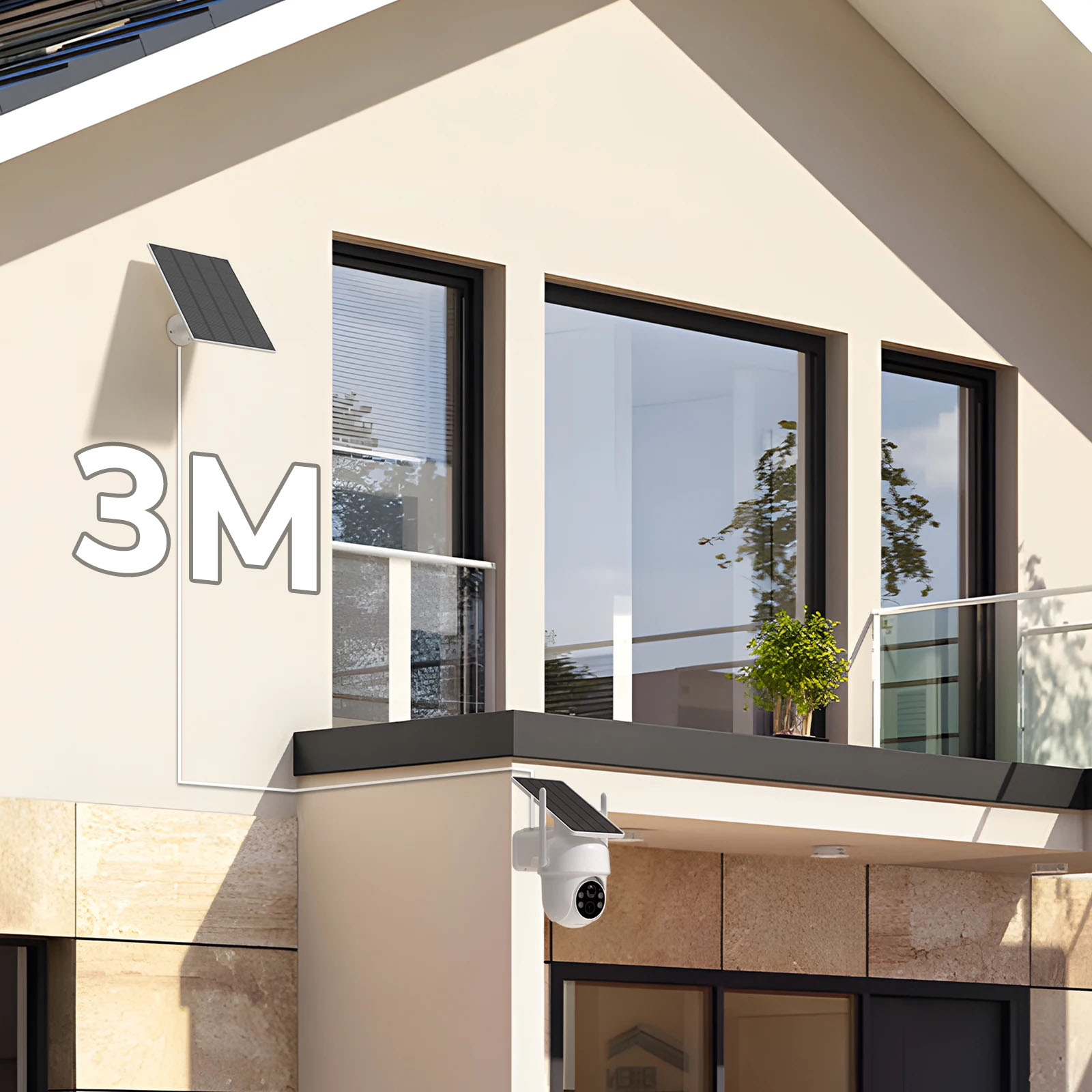

✅ 3m Cable: Long cable allows flexible connection to the camera

✅ USB-C Power: Reliable and modern connector for powering devices

Designed for Harsh Weather Conditions

▶️ Resistance to extreme temperatures, rain, and dust

The device meets IP65 protection class, keeping the electronics safe from dirt, dust, and moisture.

ℹ️ How to Position the Solar Panel?

☑️ Find the sunniest location

☑️ Tilt the panel approximately 30° towards the sun

☑️ Ideally, face the panel southwards

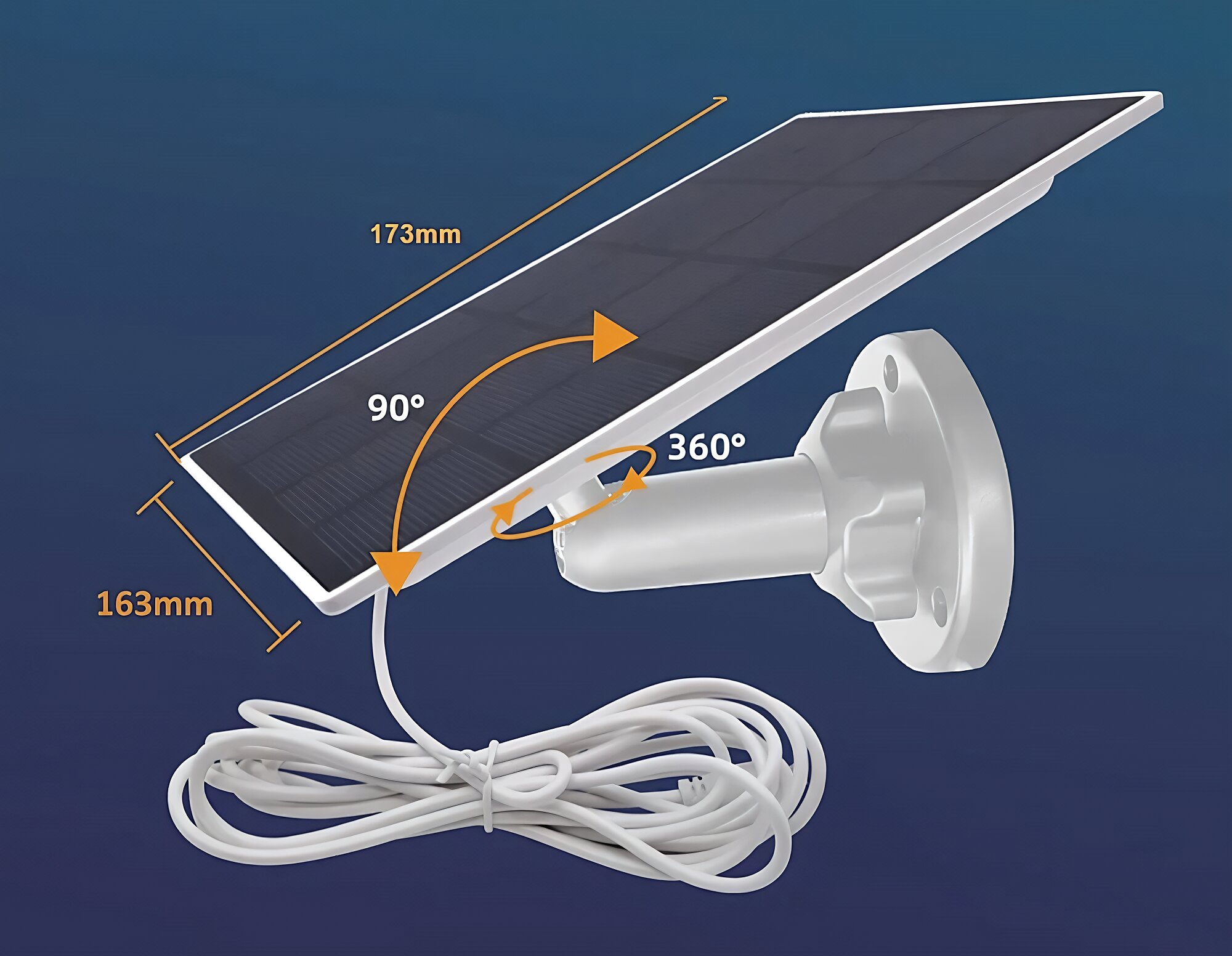

ℹ️ Dimensions:

ℹ️ Specifications:

▶️ Electrical Parameters

• ✅ Minimum Output Power: 5W ± 5%
• ✅ Open Circuit Voltage: 7.2V ± 5%
• ✅ Nominal Operating Voltage: 6.0V ± 5%
• ✅ Operating Current: 830 mA ± 5%
• ✅ Short-Circuit Current: 900 mA ± 5%
• ✅ Cell Conversion Efficiency: ≥20%

▶️ Operating Conditions

• ✅ Operating Temperature: 25℃
• ✅ Humidity: 10 ~ 90%
• ✅ Ambient Temperature Range: -20℃ ~ 60℃

▶️ Durability and Protection

• ✅ Waterproof: IP65

▶️ Dimensions and Construction

• ✅ Cable Length: 3 meters
• ✅ Panel Size: 176 × 163 mm

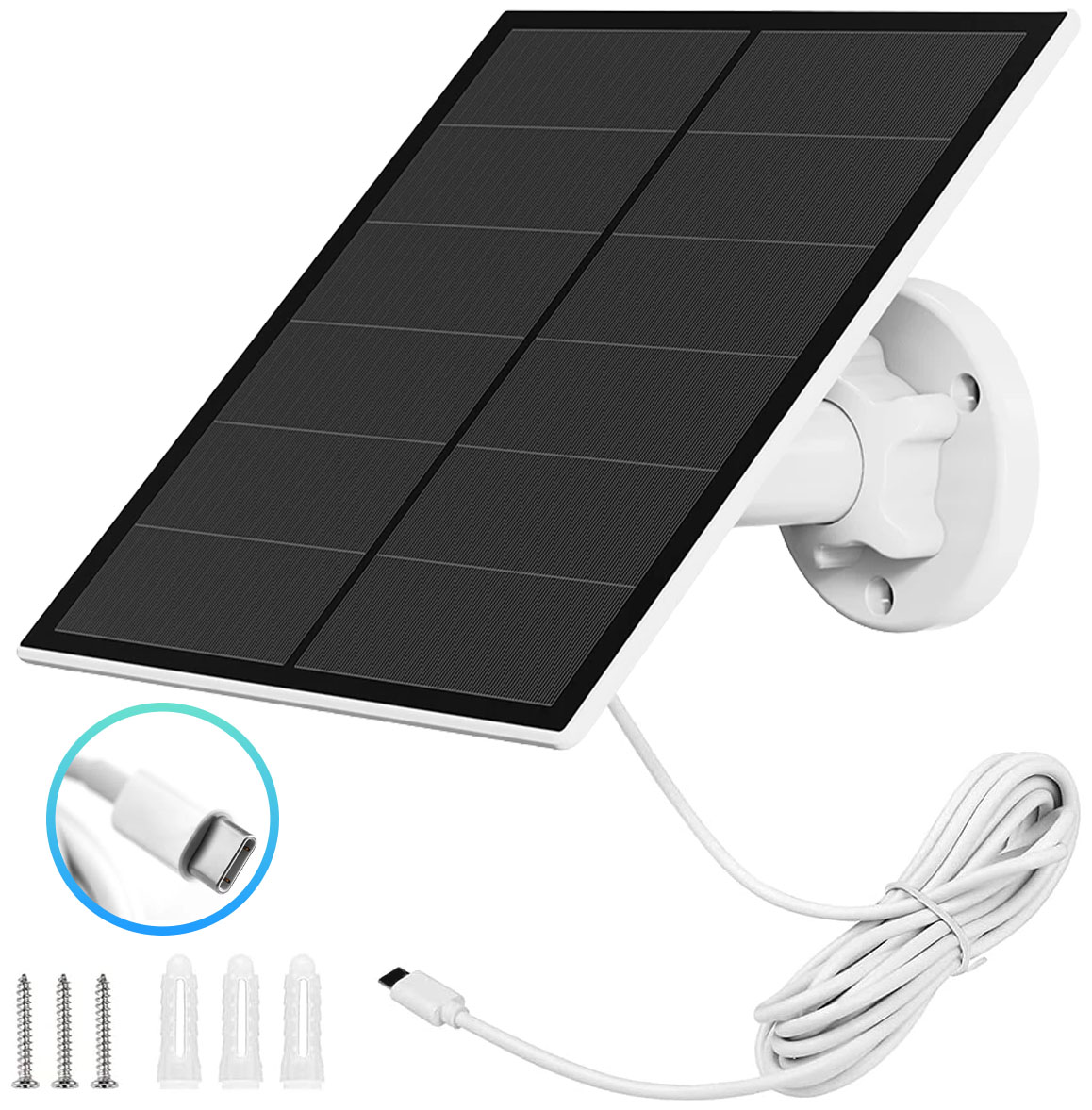

ℹ️ Package Includes:

• 1x Solar Panel
• 1x Cable
• 1x Wall Mount Bracket
• 1x Mounting Hardware
• 1x Manual

Product Code: U021
