Tuya Smart Function Panel | 10" Touch Screen | PRO

ZigBee + Bluetooth Multi Gateway | WiFi

Ethernet | RS485 | Spotify | Alexa

▶️ The PRO version supports wired Ethernet connection

▶️ Equipped with control for two lighting circuits

▶️ Plus a versatile RS485 port!

▶️ Professional Control Panel

Specifically designed for the Tuya Smart system

☑️ Built-in ZigBee + Bluetooth multi gateway

☑️ Control TUYA devices from the panel screen, programmable buttons, and voice control (Amazon Alexa)

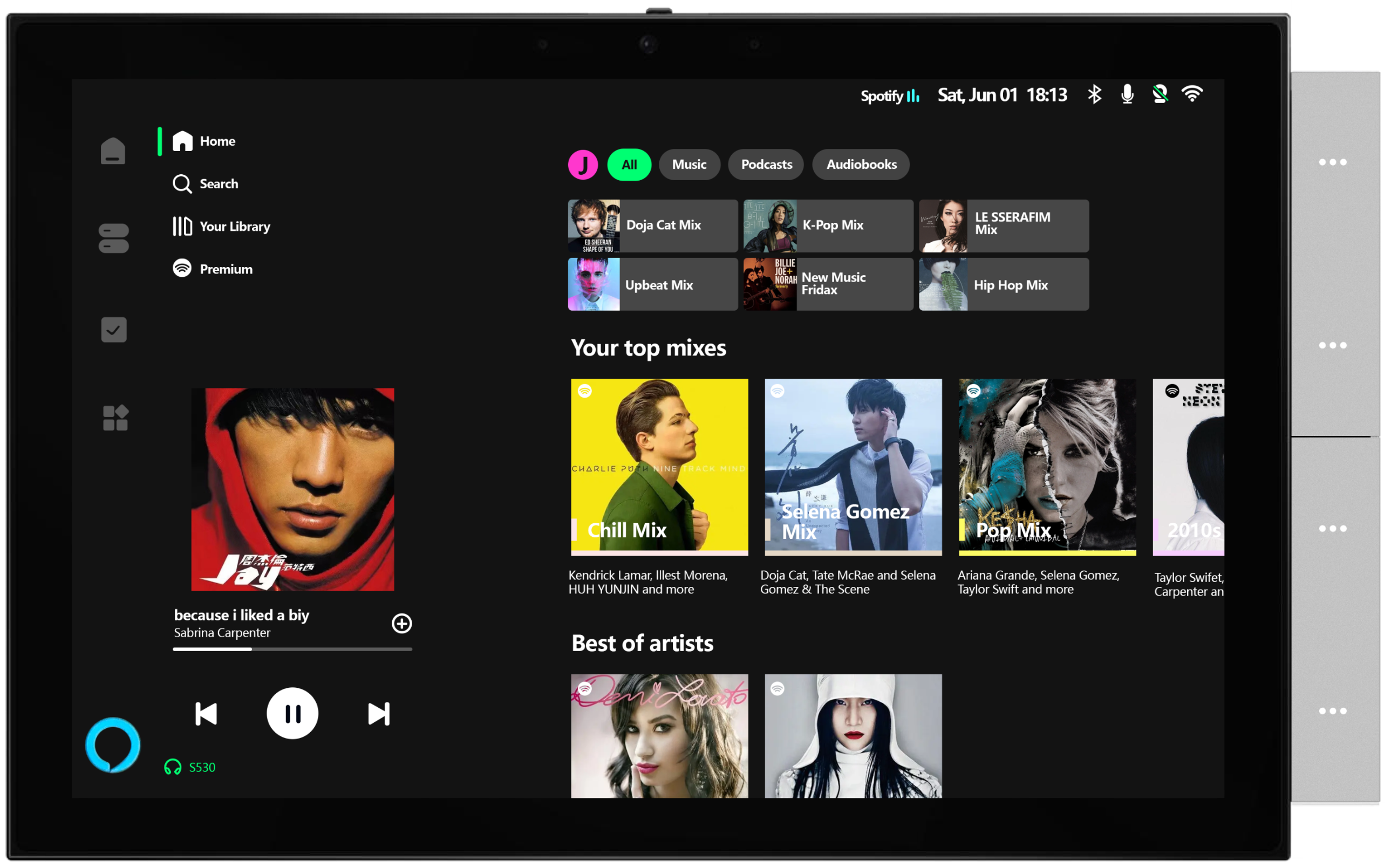

☑️ Integrated Spotify support — music at your fingertips in your smart home!

✅ Wired internet connection via Ethernet cable

✅ Bluetooth support — connect headphones, speakers, or other audio devices

✅ View ZigBee devices added to the Tuya Smart app (after update – control more devices!)

✅ Display current time and weather — data fetched directly from the internet

✅ Voice control via Amazon Alexa — built-in voice assistant, no need for an extra speaker

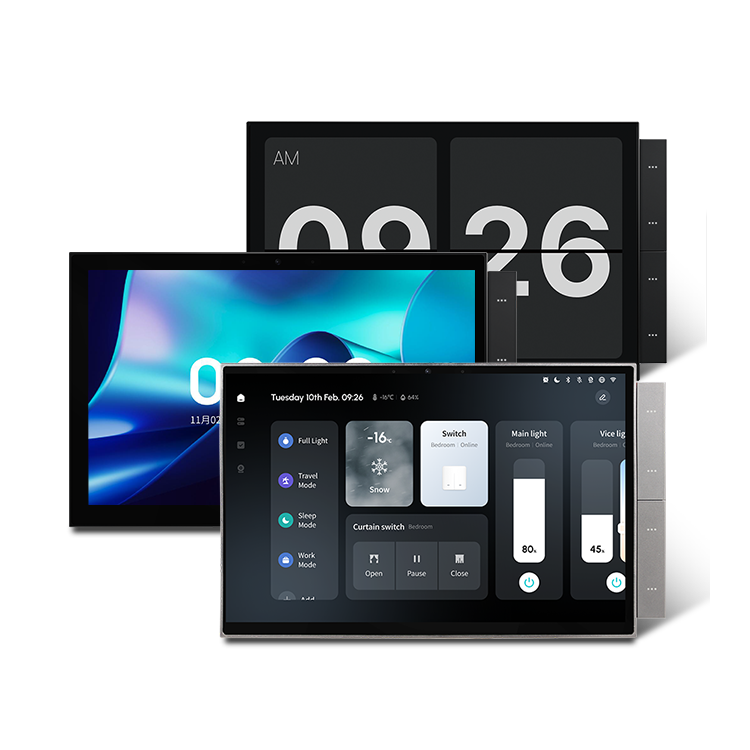

✅ Main screen customization — choose from multiple preset themes

✅ Screen saver — schedule on/off times for the display

✅ Widget configuration — quick access to selected devices from the main screen

✅ Full room control — manage devices throughout the whole home from one panel

✅ Supports a wide range of devices: thermostats, lighting, dimmers, LED controllers, light switches, curtain robots, cameras, music volume control, and more

✅ LED lighting control — turn on/off, change color and brightness

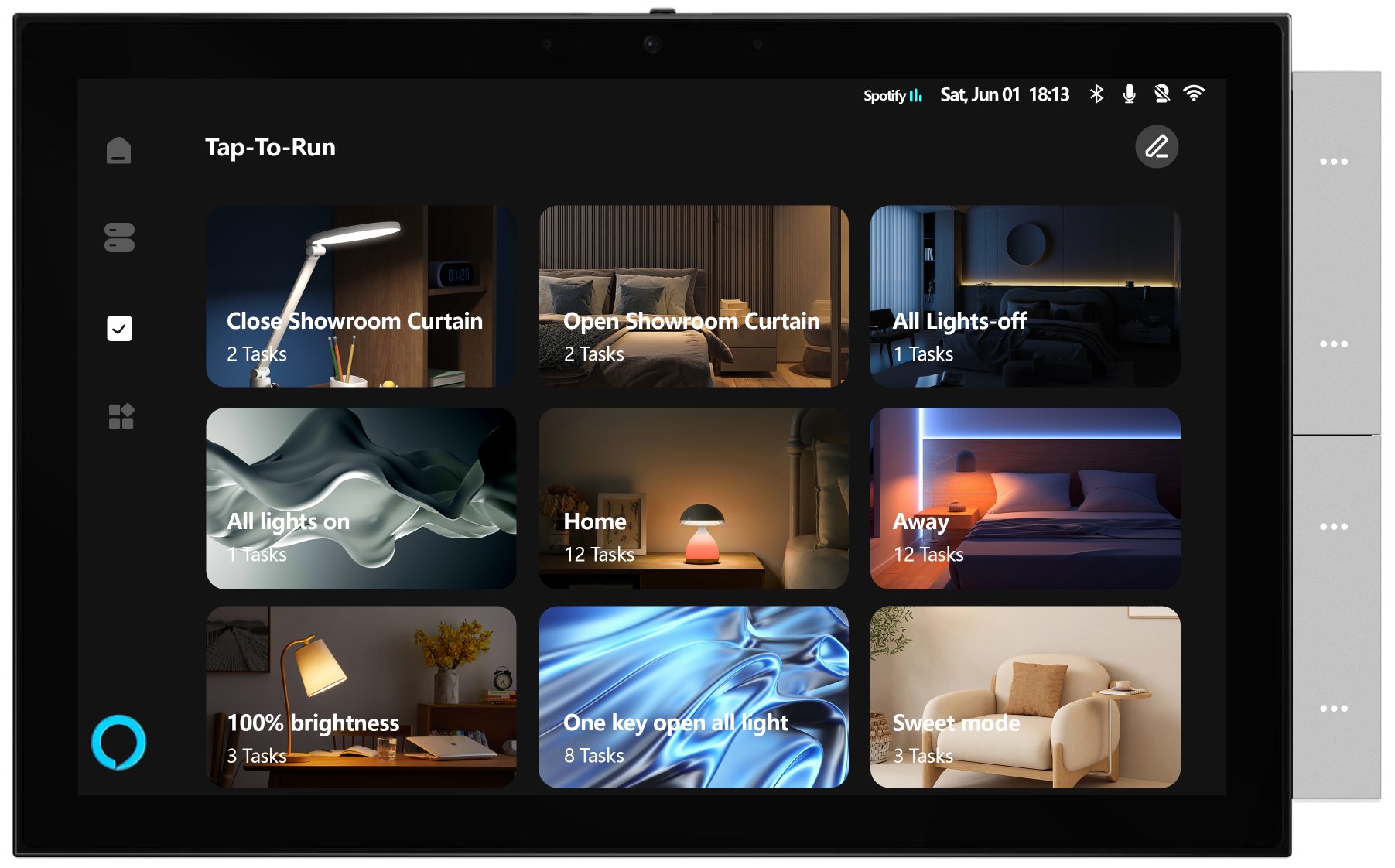

✅ Quick access to TAP TO RUN scenes created in the Tuya app

✅ Built-in microphone — ideal for use with video intercoms and IP cameras

▶️ Full-Feature Intercom

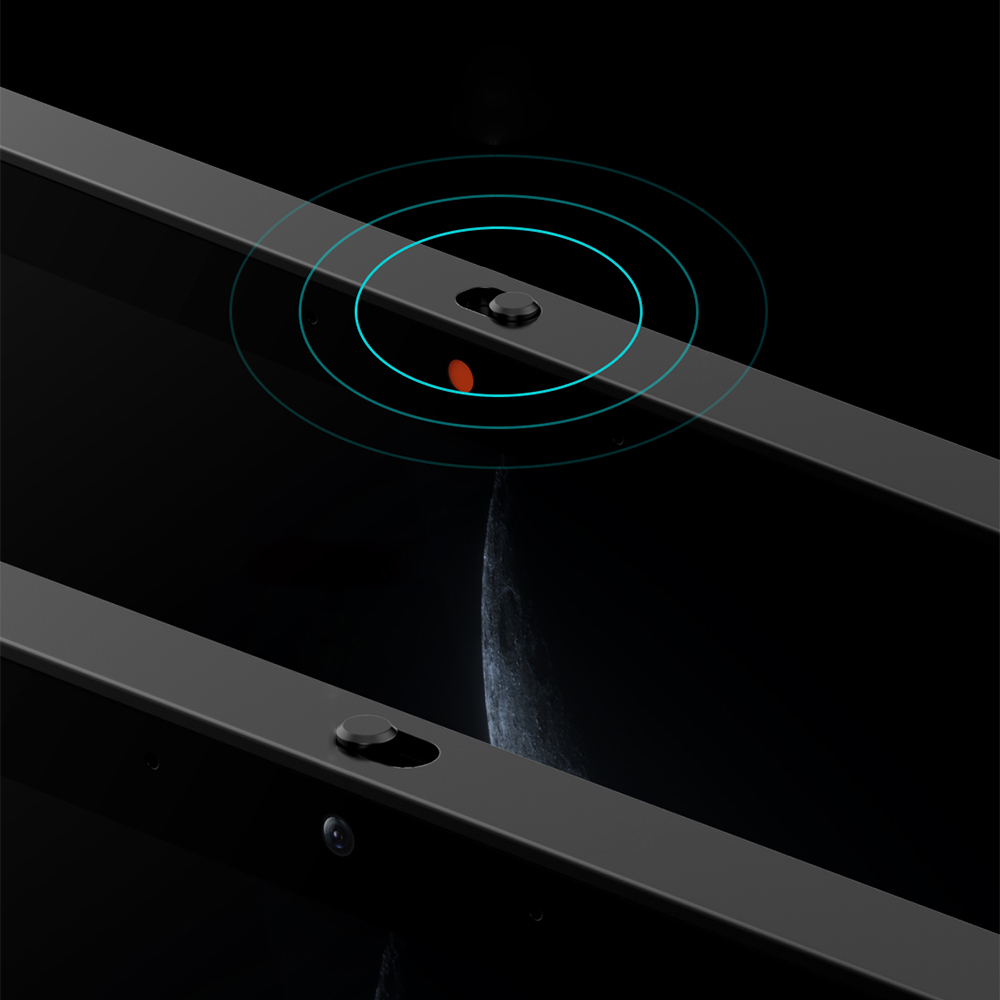

5 Megapixel camera with specially designed privacy shutter!

ℹ️ For full functionality with video intercoms, cameras, door locks, or gate controllers.

▶️ Stunningly Clear and Responsive Display

Crystal-clear and vibrant colors

The IPS TFT LCD panel with a resolution of 1920 × 1200 on a 10" screen delivers sharp details, vivid and natural colors, and wide viewing angles.

The adaptive refresh rate of 60 Hz ensures smooth and clear content display. This enables precise and lag-free touch response, greatly improving user comfort and satisfaction.

Displays 16.7 million colors for exceptionally realistic, rich, and deep images.

▶️ Control Everything

Without Limits

The 10″ touch screen panel functions as a ZigBee gateway, also supporting Bluetooth and WiFi.

Allows control of all Tuya Smart devices, creation of scenes, schedules, and automation based on location, weather, or sensor activity.

▶️ Programmable Buttons

Favorite scenes, functions or automations in just four clicks

The intuitive interface offers quick access to device status and settings, and a single click can turn on/off or adjust settings for entire device groups. This can be done both from the touch panel and by assigning functions to physical buttons on the device casing.

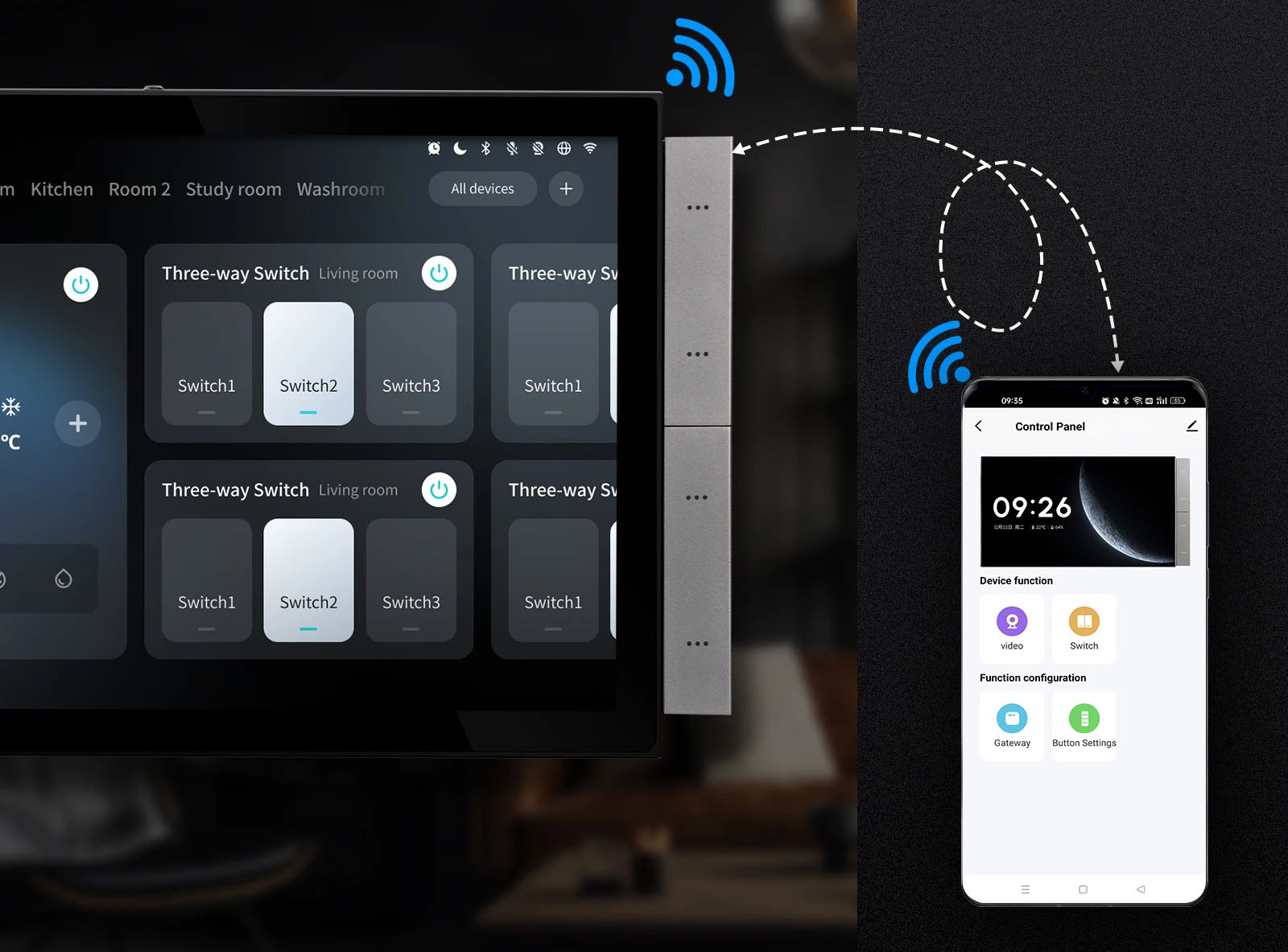

▶️ Wireless File Transfer

Quickly and conveniently transfer files between the panel and your phone using the built-in app.

ℹ️ After selecting a specific device, besides basic functions, you can use the "Go to Detail Panel" option.

It displays an overlay faithfully replicating the Tuya Smart mobile app interface, ensuring control with a familiar user experience.

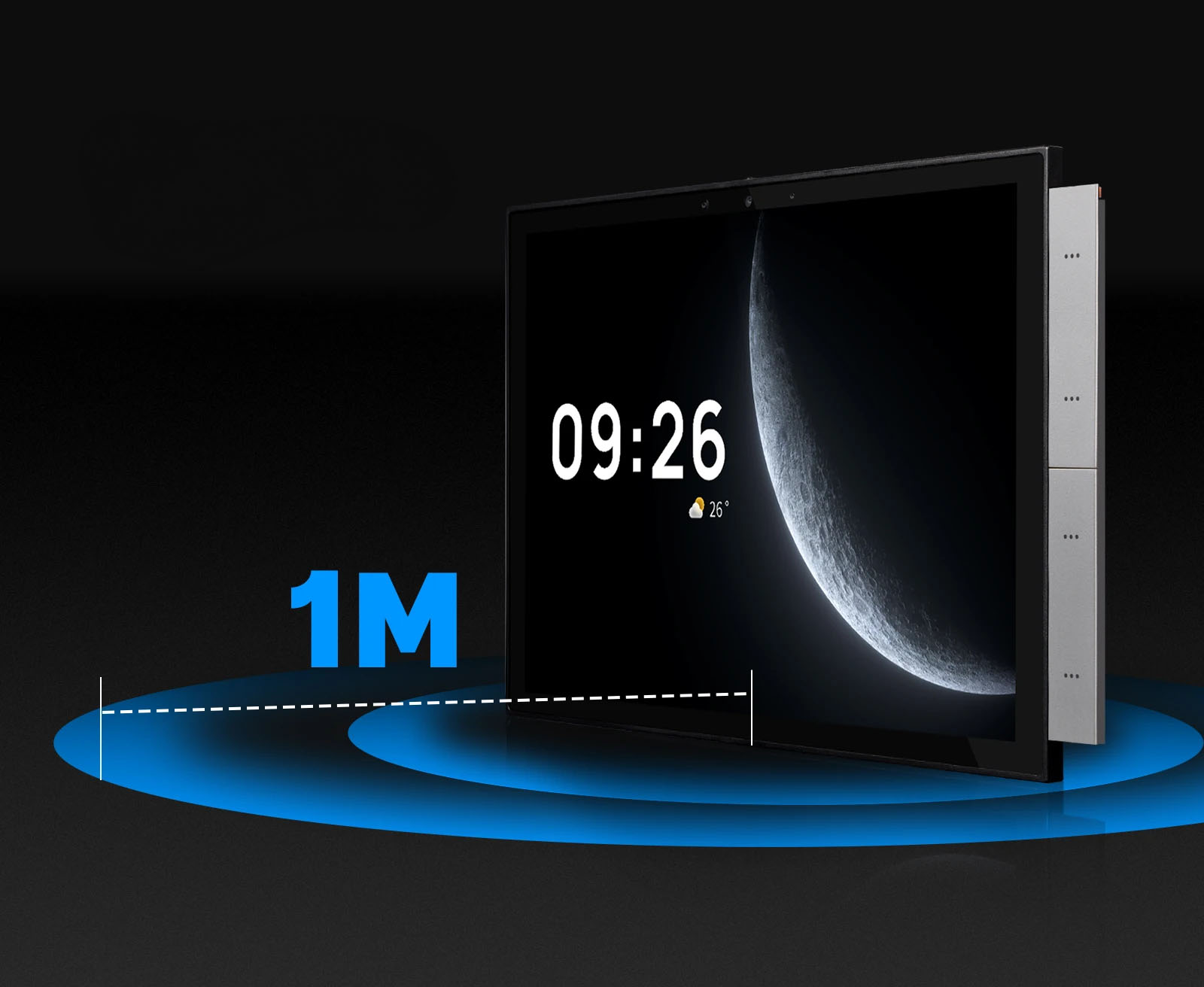

▶️ Built-in Proximity Sensor

The screen automatically turns on when motion is detected

ℹ️ What is Tuya Smart?

The most popular, proven Smart Home system

Tuya Smart is an essential part of the entire smart home ecosystem. The app is free to download on iOS and Android smartphones.

More than half a million different smart devices are supported by the Tuya app. It is available in many languages, including English. It allows connecting products through various communication protocols from WiFi, Bluetooth, up to ZigBee.

• Fast registration and easy management of multiple devices
• Home management and shared access between family members
• Communication via various protocols
• Voice control using Amazon Alexa or Google Assistant
• Advanced automation of connected smart devices
• Event notifications directly on your smartphone

ℹ️ What is ZigBee?

The most efficient dedicated Smart Home communication protocol

• ▶️ A 2.4 GHz communication protocol based on a MESH network — each device boosts the signal
• ▶️ Lightning-fast response (approx. 0.2 s) to device state changes
• ▶️ Ability to connect over 50 devices to a single gateway
• ▶️ Low power consumption, extending battery life of devices
• ▶️ Stable and reliable network that does not overload your home WiFi

ℹ️ Specifications:

▶️ Connectivity and Smart Features

• App: TUYA Smart | Smart Life
• Communication: WiFi 2.4 GHz, Bluetooth, ZigBee 3.0 (panel acts as multi gateway)
• Control: Remote via app, voice (built-in Amazon Alexa), manual via touch panel
• Features: Intercom, wireless file transfer between panel and phone, display of time and weather, TAP TO RUN scenes, widget and screen saver settings

▶️ Display Parameters

• Type: TFT LCD IPS
• Size: 10"
• Resolution: 1920 × 1200 px
• Refresh Rate: 60 Hz
• Color Range: 16.7 million

▶️ Electrical Parameters

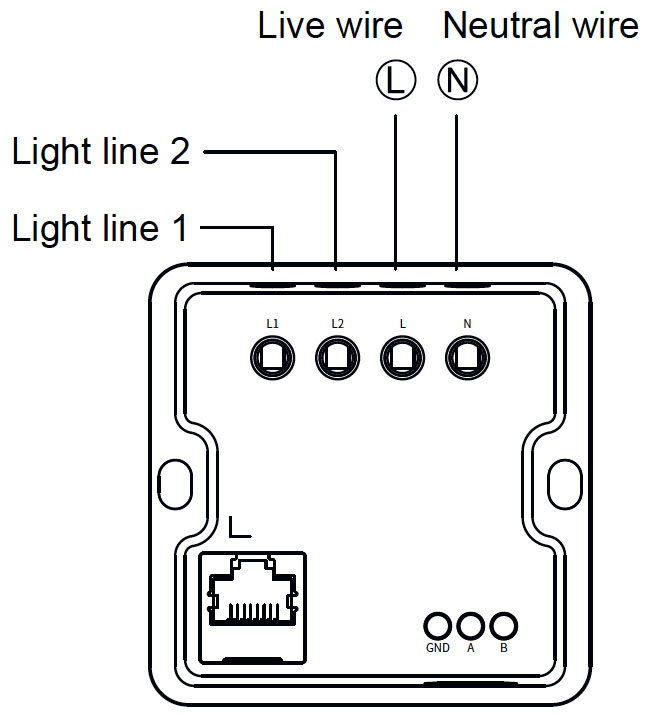

• Input Voltage: 110 V - 250 V AC, 50/60 Hz
• Power Supply: L+N

▶️ Other Parameters

• Processor: Quad-core CPU
• Ports: Ethernet (LAN), RS485
• Camera: 5 MP with physical shutter
• Proximity Sensor: Yes (activates screen on proximity)
• Device Support: Up to 50 ZigBee devices, up to 25 Bluetooth devices
• Operating Humidity: 5% - 90% RH (non-condensing)
• Dimensions: 259.4 × 161.4 × 13 mm

ℹ️ Package Includes:

• 10" Touch Panel ZigBee WiFi Bluetooth Ethernet RS485 TUYA
• User Manual

ℹ️ Product Code: T510P
